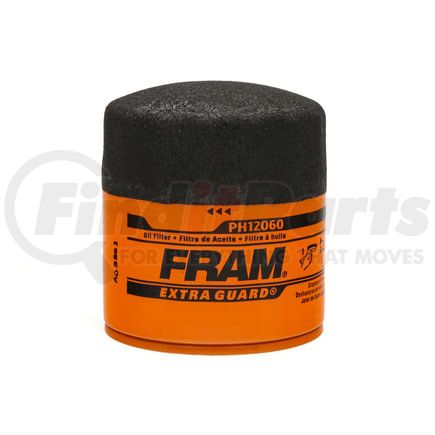

(888) 312-8812 Login SignupFRAM PH12060 Engine Oil Filter - Spin-On, 3.33" Height, 3.00" OD, Metric Thread, 19-25 PSI Bypass
Tap to view 4 more
MSRP: $13.32
$999
Save $3.33
Limited availability at this price!
In Stock
Get it by Monday, Dec 29
FRAM PH12060 Part Description
Manufacturer
Features & Benefits
- Expanded filtration surface area promotes longer-lasting contaminant holding capability
- Rugged end caps support secure media placement through extended operating cycles
- Consistent oil flow pathways contribute to smoother lubrication during high-temperature trips
- Metal body resists deformation from torque during routine filter changes
- Reliable thread engagement reduces installation issues across multiple vehicle platforms
Fram Spin-on Oil Filter
The Fram Spin-on Oil Filter supports consistent engine lubrication for drivers who want steady oil flow through varied operating conditions. Its media composition promotes strong separation of particulates during daily routes or extended service intervals, while the textured housing encourages secure grip during replacement. The silicone valve supports beneficial oil retention after shutdown, contributing to smoother restarts in a range of climates. This filter works well with multiple motor oil types and accommodates engines subjected to shifting temperature cycles. The Fram PH12060 provides an accessible maintenance option for drivers who value straightforward servicing without sacrificing filtration quality.
FRAM PH12060 Specifications
Product Attributes
| Filter Media Material | Cellulose/Synthetic Blend |
| Height | 3.330 IN |
| Anti-Drain Back Valve | Yes |
| Bypass Relief Valve | Yes |
| Filter Type | Spin-On Canister |
| Gasket Thickness | 0.196 IN |
| Housing Color | Orange |
| Non Slip Grip | Yes |
| Torque Nut | No |
| Gasket Inside Diameter | 2.450 IN |
| Gasket Outside Diameter | 2.750 IN |
| Attachment Type | Spin-On |
| Bypass Relief Valve Setting | 19-25 PS |
| Gasket Type | Base |
| Grade | Advanced |
| Grade Type | Regular |
| Inlet Type | Threaded |
| Inside Thread Diameter | M22x1.5 MM |
| Meets Or Exceeds Original Equipment Manufacturer Specifications | Yes |
| New Or Remanufactured | New |
| Outside Diameter | 3.000 IN |
| Replacable Filter | Yes |
| Reusable | No |
| Thread Size | Metric |
| Gasket Inside Diameter (Inch) | 2.450 |
| Gasket Type | Base |
| Height (Inch) | 3.330 |
| Outside Diameter (Inch) | 3.000 |
| Bypass Relief Valve Setting (Pounds per Square Inch) | 19-25 |
| Gasket Outside Diameter (Inch) | 2.750 |
| Gasket Thickness (Inch) | 0.196 |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100559869 |
| UNSPSC | 15121501 |
FRAM PH12060 Part Interchanges
| Brand | Part Number |
|---|---|
| Ultra | XG12060 |
| ACDelco | PF64, UPF64R |
| Purolator | L11403 |
| Wix | WL10290, WL10290XP |
| LUBER-FINER | PH10064, PH488 |
| Service Champ | HP2222, OF2222 |
| Certified | CPH12060 |
| General Motors | 12640445, 12667194, 12670058, 12674698, 12696048, 650237, 12683286, 12706595, 25206377 |
| Warner | WPH488 |
| Mobil 1 | M1-113A, M1-114A |
| NAPA ProSelect Filters | 2100290, 27060 |
| MotoMaster | MPH12060 |
| Defense Filters | DL12060 |
| STP | S12060 |
| Parts Master | WL610290, WL610290BP, WL610290X |
| NAPA | 100290 |
| Purolator BOSS | PBL11403 |
| PurolatorONE | PL11403 |
| Tough Guard | TG12060 |
| Mobil | MO2222 |
| Champ | PH10064 |
| Carquest Premium Filters | 95140 |
| Carquest Standard Filters | R95140 |
| Mighty Distributing System | M9509SP |
| Pennzoil | PZ194 |
| STP Filters | S12060, S12060XL |
| MicroGard | MGL10290 |
| NAPA Gold Filters | 7060 |
| ECOGARD | S11642 |
| NAPA Silver Filters | 3100290, 37060 |
| NAPA Platinum Filters | 4100290, 47060 |
| Warner Filters | WPH488 |
| Purolator TECH | TL11403 |
| FRAM Tough Guard | TG12060 |
| FRAM Ultra Synthetic | XG12060 |
| FRAM Core | COR12060ACC |
| FRAM Force | FF12060 |
| FRAM Titanium | FS12060 |
| FRAM Drive | FD12060 |
| FRAM Pro | FP12060BP |
| FRAM Synthetic Endurance | FE12060 |
| MicroGard Select | MSL10290 |
| Premium Guard | UPG64R |
FRAM PH12060 Fits Vehicles
- Suzuki Aerio (2002)
- Lincoln Nautilus (2024-2025)
- Buick Envista (2024-2025)
- Ford Mustang (2024-2025)
- Lincoln Corsair (2023-2024)
- Ford Escape (2023-2024)
- Chevrolet Captiva Sport (2012)
- Chevrolet Trailblazer (2021-2025)
- Buick Regal Sportback (2018-2020)
- Cadillac CT5 (2022-2025)
- Buick Encore GX (2020-2025)
- Chevrolet Trax (2021-2022, 2024-2025)
- Chevrolet Blazer (2019-2021)
- Chevrolet Equinox (2018-2025)
- Buick Regal TourX (2018-2020)
- GMC Terrain (2018-2024)
- Chevrolet Traverse (2018-2019)
- Buick LaCrosse (2018-2019)
- GMC Acadia (2017-2021)
- Buick Envision (2016-2020)
- Chevrolet Colorado (2015-2022)
- GMC Canyon (2015-2022)
- Chevrolet Cruze (2016-2019)
- Chevrolet Spark (2016-2022)
- Chevrolet Camaro (2016-2024)
- Buick Encore (2016-2019, 2022)
- Cadillac CT6 (2016-2018)
- Chevrolet Malibu Limited (2016)
- Chevrolet Volt (2016-2019)
- Cadillac CTS (2014-2019)
- Chevrolet Impala Limited (2014-2015)
- Chevrolet Corvette (2014-2025)
- Buick Regal (2014-2017)
- Chevrolet Impala (2013-2019)
- Cadillac ATS (2013-2019)
- Chevrolet Malibu (2013-2025)
FRAM PH12060 Cross References
We have 5 alternatives for the PH12060 by FRAM:
