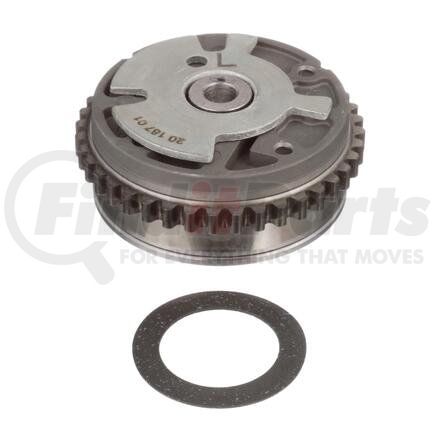

Standard Ignition VVT543 - Engine Variable Valve Timing Sprocket
- Part Number
- VVT543
- Manufacturer
- STANDARD IGNITION
- Description
-
Engine Variable Valve Timing Sprocket
details
$9199
MSRP: $126.14
Save: $34.15
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
STANDARD IGNITION part description
Product Description
Engine Variable Valve Timing Sprocket
Features & Benefits
- Direct-fit OE replacement effectively restores and maximizes engine horsepower and torque curves while reducing emissions and improving vehicle efficiency
- Precision-machined to ensure accurate variable valve timing, correct rough idle, and restore drivability
- OE-matching sprocket tooth profiles result in quiet operation
- Extensively designed to lower leakage and lash, which improves performance and leads to noise-free operation
- Undergoes 100% end-of-line testing to meet or exceed OE performance
- Included OE-style installation bolt leads to ease of installation, where applicable
- With more than 200 part numbers and counting, our line of VVT components supplies the aftermarket-leading coverage that today's service professionals demand
Product Attributes
| Functions | Engine Variable Valve Timing Sprocket |
| Washer Included | No |
| Adjustable | No |
| Gear Material | Metal |
| Gear Type | Crankshaft |
| Hardware Included | Yes |
| Inside Diameter (in) | 1.37 |
| Inside Diameter (MM) | 34.798 |
| Keyway Notch | Yes |
| Lug Hole Diameter | 0.4 |
| Lug Hole Diameter - Mm | 10.16 |
| Mounting Hole Quantity | 1 |
| Number Of Gears | 1 |
| Number Of Rows | 1 |
| Number of Teeth | 42 |
| Number Of Timing Marks | 3 |
| Outside Diameter (In) | 3.7 |
| Outside Diameter (MM) | 93.98 |
| Thickness - Inches | 0.31 |
| Thickness - mm | 7.874 |
| Tooth Width (in) | 0.31 |
| Tooth Width (mm) | 7.874 |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8483901050 |
| Warranty Distance | 36000 |
| Warranty Distance UOM | MI |
| Warranty Time | 36 |
| Warranty Time UOM | MO |
| UPC | 00727943922755 |
Part Interchanges
- Echlin ECP1745
- Gates VCP805
- ACDelco 12672484
- Sorensen 35-1341
- BWD VV5043
- General Motors 12603744
- General Motors 12626161
- General Motors 12630917
- General Motors 12648423
- General Motors 12665856
- General Motors 12672484
- General Motors 12684831
- VAICO V40-1259
- Cardone Reman 7V-1008P
- Dorman 918-187
- NAPA Solutions 610-00331
- NAPA Solutions 61000331
- VC109
- VVTB10156
- 3T1000
- 12684831
Fits Vehicles
- Chevrolet Colorado (2015-2016)
- Cadillac CT4 (2022)
- Chevrolet Impala Limited (2014-2015)
- Cadillac XTS (2013-2019)
- Buick Allure (2010)
- Cadillac ATS (2013-2019)
- Chevrolet Captiva Sport (2012-2015)
- Chevrolet Caprice (2012-2014, 2016-2017)
- Chevrolet Impala (2012-2020)
- GMC Terrain (2010-2017)
- Saab 9-5 (2010-2011)
- Chevrolet Traverse (2009-2022)
- Chevrolet Camaro (2010-2015)
- Pontiac Torrent (2008-2009)
- Chevrolet Equinox (2008-2017)
- Buick Enclave (2008-2014, 2016-2022)
- Pontiac G8 (2008-2009)
- Chevrolet Malibu (2008-2012)
- Saturn Vue (2008-2010)
- Cadillac SRX (2007-2016)
- GMC Acadia (2007-2017)
- Saab 9-3 (2007-2009)
- Saturn Outlook (2007-2010)
- Saturn Aura (2007-2009)
- Pontiac G6 (2007-2009)
- Cadillac CTS (2007-2018)
- Cadillac STS (2007-2011)
- Buick LaCrosse (2007-2008, 2010-2014, 2016)
