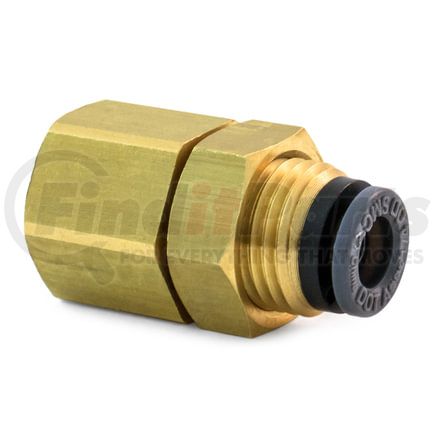

Name: Tramec Sloan S786PMTBH-6-4 Bulkhead Female Connector, 3/8x1/4
SKU: s786pmtbh64
Price: 67.45 USD
Availability: InStock

TRAMEC SLOAN part description

Product Description

3/8" TUBE X 1/4" NPT COMPOSITE FEMALE BULKHEAD CONNECTOR DOT PUSH-IN

Features & Benefits

Designed to Resist Mechanical Pull-Out
Easy to Assemble and Disassemble Over and Over Again
Swivel is for Installation Purposes Only
Use with SAE J844 Nylon Air Brake Tubing
WORKING PRESSURE:Up to 145 PSI
TEMPERATURE RANGE:-40degF to 140degF (-40degC to 60degC)
TEMPERATURE RANGE:-40°F to 140°F (-40°C to 60°C)

Product Attributes

Body Material	Composite
Configuration	Bulkhead Connector
Fitting Type	DOT Composite PTC
PIPE 1	1/4 IN
Tube 1	3/8 IN
Tramec Sub Nav	Composite Push-In Air Brake Fittings

Tramec Sloan® is a US-based manufacturer and supplier of a wide range of air products, electrical components, fittings and fasteners, and other mechanical parts for various commercial vehicles and industrial applications. The company is dedicated to providing not just superior-quality products but also exceptional service to its customers across the US. All Tramec Sloan products are created following stringent manufacturing processes to ensure reliable performance, long service life, and safety. And since they go through strict validation and testing, customers can rest assured that the product that they get from this brand will provide not only maximum performance and safety but also years of reliable service.

TRAMEC SLOAN S786PMTBH-6-4 Cross Reference

We have 1 alternatives for the S786PMTBH-6-4 by TRAMEC SLOAN:

CDOT1486-6-4
