(888) 312-8812 Login SignupDANA 70-4-03330-1X PINION SHAFT END YOKE
Tap to view 1 more
$24299
65 Day Lead Time
Due to limited availability, we will confirm your order and notify you within 1 business day.
DANA 70-4-03330-1X Part Description
Manufacturer
Specifications
| Brand | Spicer |
| Series | SPL70 |
| Spline Count | 39 |
| Yoke Style | BS |

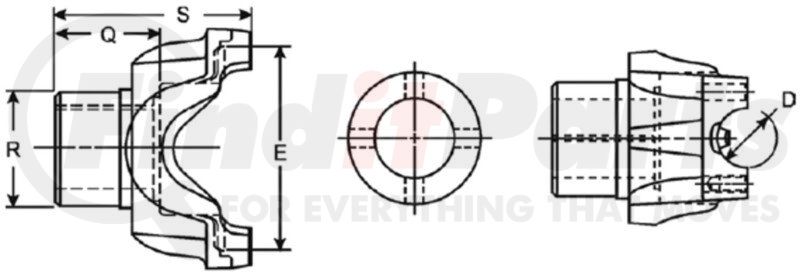

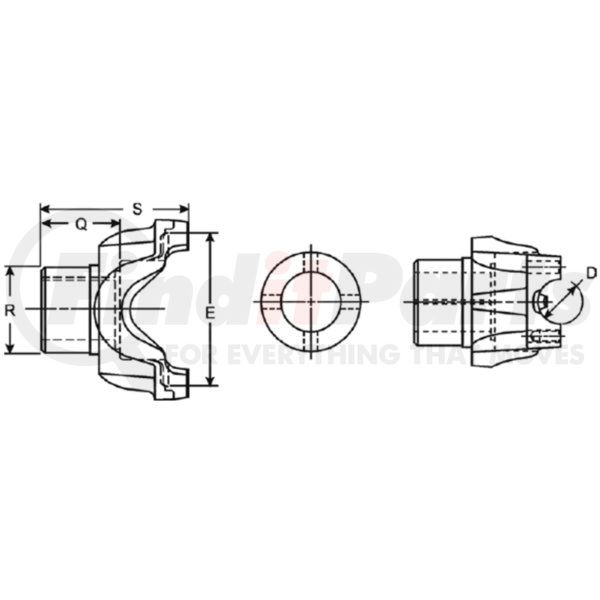

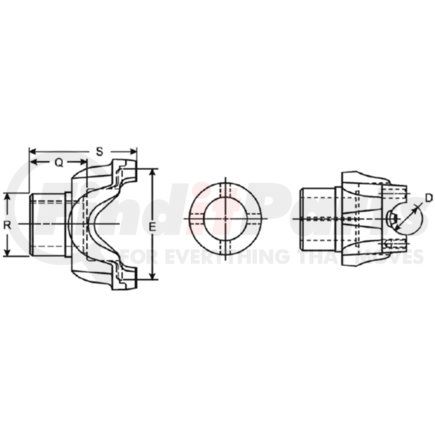

| Hub Diameter R | 3.000 |
| C/L To End Hub S | 3.875 |
| Type | Splined Hole |
| Major Diameter | 2.024 |
| Involute Spline | Y |
| Length Thru Hole Q | 1.847 |
| VMRS | 022003072 |
| C-Bore Depth | 0.250 |
| Material | Steel |
| Package Type | EACH |
| Package Qty | 1 |
| Country of Origin | United States |
DANA 70-4-03330-1X Specifications
Product Attributes
| Series | SPL70 |
| Material | Steel |
| Spline Count | 39 |
| Type | Splined Hole |
| Hub Diameter R | 3.000 IN |
| Involute Spline | Y |
| Length Thru Hole Q | 1.847 IN |
| Yoke Style | BS |
| Major Diameter | 2.024 IN |
| C/L To End Hub S | 3.875 IN |
| C-Bore Depth | 0.250 IN |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708990000 |
| Harmonized Tariff Code (HTS) | 8708990000 |
| UPC | 00023913332891 |
| VMRS Code | 022003072 |
DANA 70-4-03330-1X Part Interchanges
| Brand | Part Number |
|---|---|
| Chrysler | 5003330, SP 5003330 |
| Dana Commercial Vehicle Service Parts | 5003330 |
| General Motors | 15137559, 5003330 |
| Volvo | 5003330, SP 5003330 |
| Navistar | DS704033301X |
| Mack | 2104-704033301X |
DANA 70-4-03330-1X Customer Reviews
No reviews yet
Be the first to review this product!
DANA 70-4-03330-1X Manufacturer Information
Dana Holding Corporation® is an internationally known company specializing in drivetrain and e-Propulsion systems. It conceptualizes, manufactures, and supplies energy-management and power- and conveyance solutions for the present-day and future vehicles and trucks. With its over 115 years of industry experience and innovation, and despite several turbulences the automotive and trucking industry has been through, Dana has managed to take the lead in revolutionary technological inventions. Dana Holding Corporation comprises different world-renowned brands catering to various market segments. These include SPICER Drivetrain Systems, VICTOR REINZ Sealing Products, LONG Thermal Products, BREVINI Motion Systems, GRAZIANO High-Performance Transmissions, FAIRFIELD Custom Gears and Drives, and a lot more.
