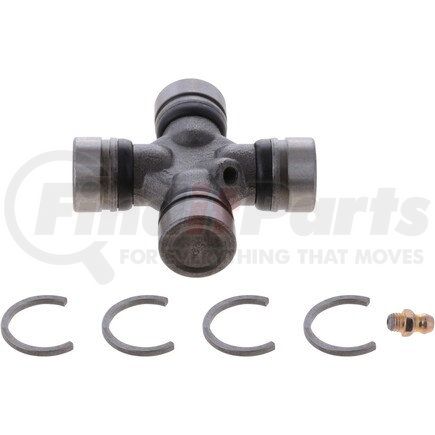

Dana 5-3242X - Universal Joint - Steel, Greaseable, ISR Style, Mechanics 2 Series
$3399
In stock
limited availability at this price!
. Learn more
DANA part description
| Greaseable: | Y |
| Type: | ISR Style |
| OEM Series: | MECHANICS 2 |
| Bearing Cap Diameter: | 1.000 in. |
| Snap Ring: | 2.342 in. |
| Bearing Cap Type: | Round |
| Snap Ring Type: | Internal |
| Snap Ring Included: | Y |
| Grease Fitting Location: | One straight lube fitting in cross |
| Material: | Steel |
| Hardware Included: | N |
| Length A (IN): | 2.342 |
| Length B (IN): | 2.342 |
| Bearing Cap Type: | ISR |
Product Description
Features & Benefits
- Journal cross is engineered with a solid cold-formed body to ensure better wear and overall strength.
- Bearing cups are heat treated for strength; precision-ground and case-hardened for durability.
- Multi-lip seal keeps grease in and contaminants out, and gets maximum retention in a wider range of environments.
- Thrust washers eliminate metal-to-metal contact, prevent wear and lower the overall operating temperature.
Product Attributes
| Material | Steel |
| Bearing Cap Diameter (1) | 1.00 IN |
| OEM Series | MECHANICS 2 |
| Type | ISR Style |
| Bearing Cap Diameter (2) | 1.00 IN |
| Bearing Cap Type | Round with ISR Groove |
| Snap Ring Included | Y |
| Snap Ring Type | Internal |
| Grease Fitting Location | One straight lube fitting in cross |
| Greaseable | Y |
| Bearing Cap Diameter A (mm) | 25.4 MM |
| Bearing Cap Diameter B (mm) | 25.4 MM |
| Bearing Cap Type A | ISR |
| Bearing Cap Type B | ISR |
| Hardware Included | N |
| Length A (In) | 2.342 IN |
| Length A (mm) | 59.5 MM |
| Length B (In) | 2.342 IN |
| Length B (mm) | 59.5 MM |
| Grease Zerk Included | Y |
| Mounting Hardware Included | N |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708996810 |
| Harmonized Tariff Code (HTS) | 8708996810 |
| UPC | 00023913487959 |
| VMRS Code | 024002046 |
Part Interchanges
Fits Vehicles
- American Motors American (1965-1967)
- Buick Special (1961-1963)
- Mercury Custom (1952-1954)
- Ford Custom (1950-1952, 1957)
- Oldsmobile Fiesta (1953)
- Oldsmobile Deluxe 88 (1951-1953)
- Oldsmobile 88 (1950, 1954-1956)
- Oldsmobile 98 (1950-1956)
- Oldsmobile Series 98 (1941-1942, 1946-1949)
- Pontiac Torpedo (1946-1948)
- Pontiac Streamliner (1941-1942, 1946-1952)
- Pontiac Star Chief (1954-1955)
- Pontiac Chieftain (1949-1955)
- Pontiac Catalina (1950-1955)
- Oldsmobile Jetfire (1962-1963)
- Oldsmobile F85 (1961-1963)
- Oldsmobile Cutlass (1961-1963)
- Mercury Monterey (1950-1954)
- Ford Thunderbird (1955)
- Ford Ranchero (1957-1960)
- Ford Mustang (1964-1966)
- Ford Mainline (1952-1956)
- Ford Galaxie (1959-1960)
- Ford Fairlane (1955-1960)
- Ford Deluxe (1949-1951)
- Ford Customline (1952-1956)
- Ford Crestline (1950-1954)
- Ford Country Squire (1950-1960)
- Ford Country Sedan (1950-1960)
