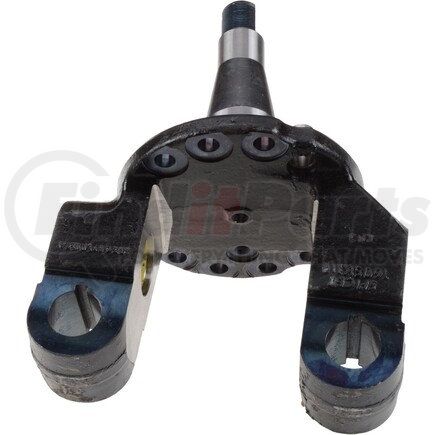

Dana 120SK156-X - I100/I120 Series Steering Knuckle - Right Hand, 1.500-12 UNF-2A Thread
$1,42699
MSRP: $2,124.77
Save: $697.78
In stock
limited availability at this price!
. Learn more
DANA part description
| Brand: | Spicer |
| Side: | Right Hand |
| Series: | I100. I120 |
| Length (Boss to End): | 8.569 |
| Length (Boss to Locknut): | 8.211 |
| Spindle Large Diameter: | 2.6238 |
| Spindle Small Diameter: | 1.747 |
| Thread Type Wheel End: | 1.500-12 UNF-2A |
| Number of Brake Holes: | 8 |
| Brake Hole Diameter: | 0.652-0.665 |
| Sensor Hole Diameter: | 0.867 |
| Stop Bolt Hole: | .500-13 UNC-2B THD |
| Pin Bore Diameter: | 1.500-1.625 |
| VMRS: | 11001004 |
| Package Type: | Each |
| Package Quantity: | 1 |
| Weight: | 55.56 lbs. |
| Country of Origin: | India |
| UPC Code: | 023913190316 |
Product Attributes
| Series | I100, I120 |
| Side | Right Hand |
| Length (Boss To End) | 8.569 IN |
| Length (Boss To Locknut) | 8.211 IN |
| Spindle Large Diameter | 2.6238 IN |
| Spindle Small Diameter | 1.747 IN |
| Thread Type Wheel End | 1.500-12 UNF-2A |
| Sensor Hole Diameter | 0.867 |
| Stop Bolt Hole | .500-13 UNC-2B THD |
| Caliper Mounting Hole Diameter | 0.652-0.665 |
| Caliper Mounting Hole Quantity | 8 |
| King Pin Bore Diameter | 1.500-1.625 |
Additional Information
| Country of Origin (Primary) | IN |
| Harmonized Tariff Code (Schedule B) | 8708990000 |
| Harmonized Tariff Code (HTS) | 8708990000 |
| UPC | 00023913190316 |
| VMRS Code | 011001004 |
Part Interchanges
- Daimler Truck North America SP 120SK156 X
- Volvo SP 120SK156X
- International Harvester (IHC) 2502162C91
- International Harvester (IHC) H120SK156 X
- International Harvester (IHC) H120SK156X
- Navistar 2502162C91
- Navistar DS120SK156X
- Navistar H120SK156 X
- Navistar H120SK156X
- Mack 2719-120SK156 X
- Mack 2719-120SK156X
- Freightliner SP 120SK156 X
- Blue Bird 8201139
