(888) 312-8812 Login SignupWEATHERHEAD 400 Hansen and Gromelle Quick Disconnect Coupling - Socket

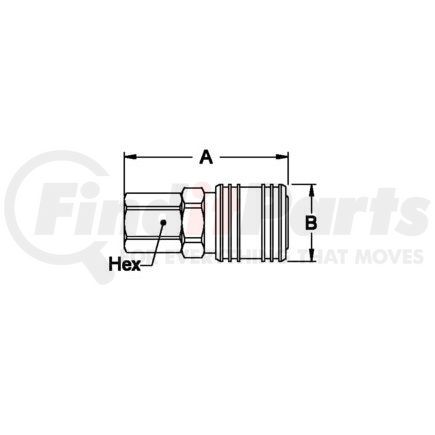

*Representative image - actual part not displayed
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
WEATHERHEAD 400 Part Description
Manufacturer
| C (inch) | 2.44 |
| D (inch) | 0.91 |
| Air Flow Capacity (Ac) | 24 |
| Applications and Markets | General Pneumatics, Construction, Industrial Plants, Fluid Transfer |
| Connection | Manual Connect |
| Coupling Type | Industrial Interchange Ball Lock |
| Dust Plug Material | Vinyl |
| Dust Plug Part Number | P-SDC-1-HK |
| Hex (inch) | 0.81 |
| Hose Outside Diameter (mm) | Brass |
| Interchangeability | US Industrial Interchange, Tru-Flate |
| Locking Balls Material | Stainless Steel |
| Max Temperature (F) | 250 |
| Min Temperature (F) | -40 |
| Optional Seal Materials | 138-Silicone, 143-Fluorocarbon, 192-EPDM |
| Seal Material | Buna-N (Nitrile) |
| Sleeve Material | Nickel Plated Steel |
| Spring Material | Stainless Steel |
| Thread Size | 1/4-18 NPTF |
| Valve Material | Zinc Plated Steel |
Features & Benefits
- Ball latching mechanism
- Optional sleeve lock
- All sizes accept US Industrial Interchange in the 1/4” & 1/2” sizes and accepts ISO 6150 B and A-A-59439 males/plugs
- Standard body material: Brass with nickel plated steel sleeve
- Standard seal material: Nitrile
- Optional seal materials: Silicone, FKM, & EPDM
- Eaton’s 1000/400/500 Series is an industrial interchange pneumatic coupling that is rugged and reliable designed for use with compressed air, gases, and liquids.
- Ball lock
- Manual operation
- Rugged, reliable
- All sizes accept US Industrial Interchange; 1/4" and 1/2" also accept ISO 1650 Series B and A-A-59439 (former MIL-C-4109) plugs
- Optional sleeve lock prevents accidental disconnection
- Optional seal and valve materials available
- Series 1000 socket available in stainless steel
- Series 400 sockets accept Tru-Flate Interchange plugs and Industrial Interchange plugs
WEATHERHEAD 400 Customer Reviews
No reviews yet
Be the first to review this product!
WEATHERHEAD 400 Manufacturer Information
Officially acquired by Eaton in 2002, Weatherhead® is one of the industry’s biggest suppliers of hydraulic hose, hose ends, tube fittings, couplings, assembly equipment, and support accessories. Weatherhead crafts top-products that are widely used in mining, agriculture, construction, truck, and bus applications. Eaton delivers Weatherhead thermoplastic tubing in different sizes—from 1/8 to 1 inch—designed for use in air tools, robotics, beverage dispensing as well as air and water supply. Driven by the company’s goal to offer unique solutions to a wide range of markets that enable businesses to be at the forefront of change, Weatherhead remains the truck industry’s leading source of premium-quality hoses, fittings, and adapters for your fleet’s hose and fittings needs
