(888) 312-8812 Login SignupWEATHERHEAD 210 Hydraulic Coupling / Adapter - 0.56" hex, 1/4-18 NPTF thread, Push-to-Connect

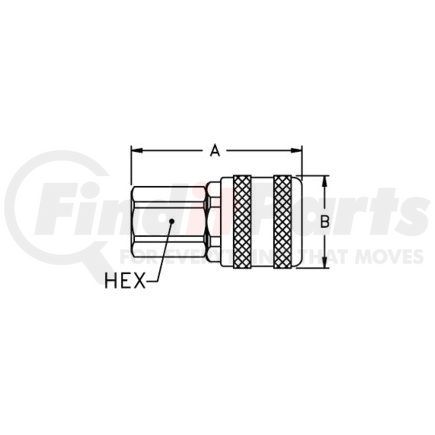

*Representative image - actual part not displayed
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
WEATHERHEAD 210 Part Description
Manufacturer
| C (inch) | 1.5 |
| D (inch) | 0.63 |
| Air Flow Capacity (Ac) | 21 |
| Applications and Markets | Breathing Equipment, Welding, Shipyards, General Pneumatics, Construction, Nitrous Oxide |
| Connection | Push-To-Connect |
| Coupling Type | ARO Interchange Automatic, Pin-Type |
| Dust Cap Material | Vinyl |
| Dust Cap Part Number | PPDC1HK |
| Dust Plug Material | Vinyl |
| Dust Plug Part Number | PSDC1HK |
| Hex (inch) | 0.56 |
| Hose Outside Diameter (mm) | Carbon Steel |
| Interchangeability | ARO Interchange |
| Locking Pin Material | Alloy Steel |
| Max Temperature (F) | 250 |
| Min Temperature (F) | -40 |
| Sleeve Material | Carbon Steel |
| Spring Material | Hard Drawn Steel |
| Thread Size | 1/4-18 NPTF |
| Valve Material | Buna-N (Nitrile) |
| Warning | WARNING: Oxygen increases combustibility. Fire and explosion could occur causing severe bodily injury or death. Be sure to select the proper coupling for your application and use it only within the specified service pressure range. |
Features & Benefits
- Flow Capacity *(Ac); Air flow (scfm) with 5 psi pressure drop and 100 psig inlet pressure. Series 700 couplings are not to be used with acetylene at pressures exceeding 15 psig.
- Ball lock
- Manual operation
- Non-interchangeable designs prevent crossing of lines
- Sleeves are color coded to identify each series: -Series 600 sleeves are green for oxygen, -Series 700 sleeves are red for acetylene
- Series 600 and 700 couplings can also be used with compressed air and other gases
- Sockets with SL suffix have the sleeve lock feature to prevent accidental disconnection
- Series 600 and 700 couplings with sleeve lock feature comply with OSHA requirements, which state couplings shall be the type that cannot be unlocked or disconnected by means of a straight pull without rotary motion
WEATHERHEAD 210 Customer Reviews
No reviews yet
Be the first to review this product!
WEATHERHEAD 210 Manufacturer Information
Officially acquired by Eaton in 2002, Weatherhead® is one of the industry’s biggest suppliers of hydraulic hose, hose ends, tube fittings, couplings, assembly equipment, and support accessories. Weatherhead crafts top-products that are widely used in mining, agriculture, construction, truck, and bus applications. Eaton delivers Weatherhead thermoplastic tubing in different sizes—from 1/8 to 1 inch—designed for use in air tools, robotics, beverage dispensing as well as air and water supply. Driven by the company’s goal to offer unique solutions to a wide range of markets that enable businesses to be at the forefront of change, Weatherhead remains the truck industry’s leading source of premium-quality hoses, fittings, and adapters for your fleet’s hose and fittings needs
