(888) 312-8812 Login SignupWEATHERHEAD 11B Hansen and Gromelle Quick Disconnect Coupling - One Way Plug

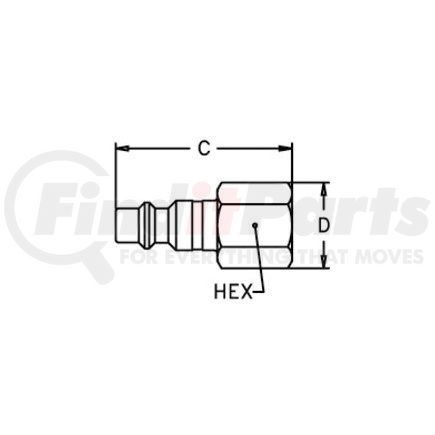

*Representative image - actual part not displayed
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
WEATHERHEAD 11B Part Description
Manufacturer
| C (inch) | 2.14 |
| D (inch) | 0.5 |
| Air Flow Capacity (Ac) | 19 |
| Applications and Markets | Construction, Maintenance & Repair, In-Plant/Industrial, Pneumatic Tools |
| Connection | Push-To-Connect |
| Coupling Type | Industrial Interchange Auto-Flo |
| Dust Cap Material | Vinyl |
| Dust Cap Part Number | PPDC1HK |
| Dust Plug Material | Vinyl |
| Dust Plug Part Number | PSDC1HK |
| Hex (inch) | 0.75 |
| Hose Outside Diameter (mm) | Brass |
| Interchangeability | US Industrial Interchange, ISO 6150 Series B, A-A-59439 (former MIL-C-4109), Tru-Flate Interchange, ARO 210 Interchange |
| Max Temperature (F) | 200 |
| Min Temperature (F) | -40 |
| Thread Size | 1/4-18 NPTF |
| Warning | WARNING: Oxygen increases combustibility. Fire and explosion could occur causing severe bodily injury or death. Be sure to select the proper coupling for your application and use it only within the specified service pressure range. |
Features & Benefits
- Ball latching mechanism
- Optional sleeve lock
- All sizes accept US Industrial Interchange in the 1/4” & 1/2” sizes and accepts ISO 6150 B and A-A-59439 males/plugs
- Standard body material: Brass with nickel plated steel sleeve
- Standard seal material: Nitrile
- Optional seal materials: Silicone, FKM, & EPDM
- Eaton’s 1000/400/500 Series is an industrial interchange pneumatic coupling that is rugged and reliable designed for use with compressed air, gases, and liquids.
- Automatic push-to-connect
- Pin-lock design
- Non-interchangeable designs prevent crossing of lines
- Sleeves are color coded to identify each series: -Series 600 sleeves are green for oxygen, -Series 700 sleeves are red for acetylene
- Series 600 and 700 couplings can also be used with compressed air and other gases
- Sockets with SL suffix have the sleeve lock feature to prevent accidental disconnection
- Series 600 and 700 couplings with sleeve lock feature comply with OSHA requirements, which state couplings shall be the type that cannot be unlocked or disconnected by means of a straight pull without rotary motion
WEATHERHEAD 11B Customer Reviews
No reviews yet
Be the first to review this product!
WEATHERHEAD 11B Manufacturer Information
Officially acquired by Eaton in 2002, Weatherhead® is one of the industry’s biggest suppliers of hydraulic hose, hose ends, tube fittings, couplings, assembly equipment, and support accessories. Weatherhead crafts top-products that are widely used in mining, agriculture, construction, truck, and bus applications. Eaton delivers Weatherhead thermoplastic tubing in different sizes—from 1/8 to 1 inch—designed for use in air tools, robotics, beverage dispensing as well as air and water supply. Driven by the company’s goal to offer unique solutions to a wide range of markets that enable businesses to be at the forefront of change, Weatherhead remains the truck industry’s leading source of premium-quality hoses, fittings, and adapters for your fleet’s hose and fittings needs
