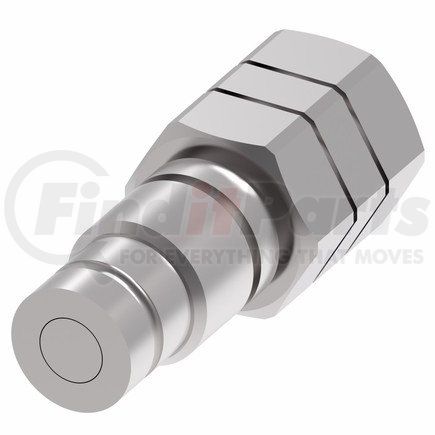

(888) 312-8812 Login SignupWEATHERHEAD 10FFP37 FF Series Hydraulic Coupling / Adapter - Male, 1.06" hex, 3/8"-18 NPT thread, 2-way valve
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
WEATHERHEAD 10FFP37 Part Description
Manufacturer
| Long Description | Eaton Hansen and Gromelle 10FFP37 FF Series Plug Carbon steel 3/8-18 NPT |
| Air Inclusion (Max) | .01 Cubic Centimeter |
| Angle (Shape) | Straight |
| Application | Hydraulic and Fluid Transfer, Construction equipment, Agricultural equipment, Utility vehicles, On-Highway vehicles, Stationary in-plant hydraulics and fluid transfer, Interchangeable with HTMA couplings in the 3/8ö size |
| Body Size | 43898 |
| Brand | Eaton |
| Burst Pressure | 20300 Pound Per Square Inch / 1,399.64 bar |
| Catalog Number | 10FFP37 |
| Certifications | ISO 16028 |
| Compliances | RoHS Compliant|European Pressure Equipment Directive (PED) 97 /23 EC Article 3.3|REACH |
| Connection Style | Manual Connect |
| End Type 1 | NPT |
| Finish/Plating | Guardian seal |
| Flow Rate | 7.7 Gallons Per Minute / 29.15 liters per minute |
| Fluid Loss | .006 Cubic Centimeter |
| GTIN Type | U |
| Hex Size 1 | 1.06 Inch / 26.92 mm |
| Internal Connection Type | Flat Face |
| Item Type | Male Half |
| Marketing Description | EatonÆs FF series flat face is specifically designed for those applications where quick and easy connections and no-spill performance are essential. The FF Series is ideal for use when global interchangeability with other manufacturers is important and is important and is available in sizes from 1/4 inch through 2 inch to best meet your specific size requirements. |
| Maximum Working Temperature | 212 Fahrenheit / 100 Celsius |
| Minimum Working Temperature | -13 Fahrenheit / -25 Celsius |
| Product Material | Carbon steel |
| Product Name | Plug |
| Product Trade Name | FF Series |
| Product Volume | 3.44 Cubic Inch / 56,371.62 Cubic mm |
| Safety locking Mechanism | Sleeve lock |
| Seal Material | NBR+AU |
| Sub Brand | Hansen and Gromelle |
| Taxonomy | Quick Disconnect Couplings |
| Thread Sealant | No |
| Thread Size 1 | 43167 |
| Torque | 31.5 lb./ft / 46.88 kg/m |
| Valve Type | 2 way |
| Working Pressure | 5075 Pound Per Square Inch / 349.91 bar |
In the hydraulic product line, Eaton offers the ISO 16028 Standard Flat Face (FF) Series line of Quick Disconnect Couplings. The newly redesigned Flat face couplings offer several competitive advantages. Connect to Eaton FF couplings – a top performing coupling for better productivity, fuel efficiency and reliability.
Features & Benefits
- Higher working pressure: Exceeds ISO 16028 with higher operating pressure up to 400 bar
- Higher flow rates! Exhibits 17-30% higher flow rates than previous versions
- A whole new level of corrosion resistance: Up to 1000 hours corrosion resistance with environment friendly coating (nickel free)
- Connect under residual pressure up to 350 bar with optional FFCUP plug. Standard version to connect under lower residual pressure
- Eaton's FF series flat face is specifically designed for those applications where quick and easy connections and no-spill performance are essential
- The FF series is ideal for use when global interchangeability with other manufacturers is important and is available in sizes from 1/4ö through 2ö to best meet your specific size requirements
- Meets or exceeds ISO 16028 standard
- Push-to-connect
- Standard sleeve lock prevents accidental disconnection
- Color identification rings available to help prevent crossing of lines
WEATHERHEAD 10FFP37 Customer Reviews
No reviews yet
Be the first to review this product!
WEATHERHEAD 10FFP37 Manufacturer Information
Officially acquired by Eaton in 2002, Weatherhead® is one of the industry’s biggest suppliers of hydraulic hose, hose ends, tube fittings, couplings, assembly equipment, and support accessories. Weatherhead crafts top-products that are widely used in mining, agriculture, construction, truck, and bus applications. Eaton delivers Weatherhead thermoplastic tubing in different sizes—from 1/8 to 1 inch—designed for use in air tools, robotics, beverage dispensing as well as air and water supply. Driven by the company’s goal to offer unique solutions to a wide range of markets that enable businesses to be at the forefront of change, Weatherhead remains the truck industry’s leading source of premium-quality hoses, fittings, and adapters for your fleet’s hose and fittings needs
