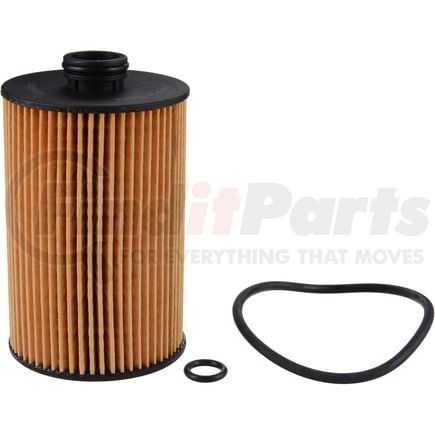

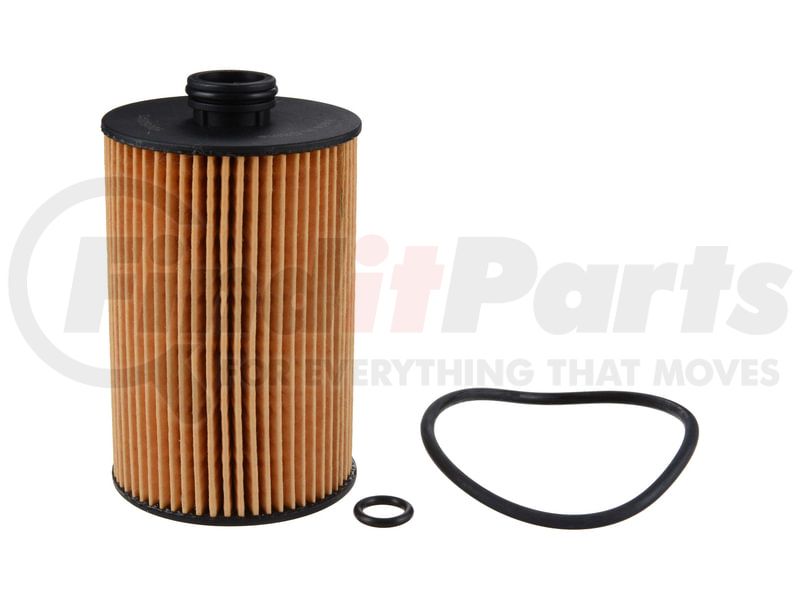

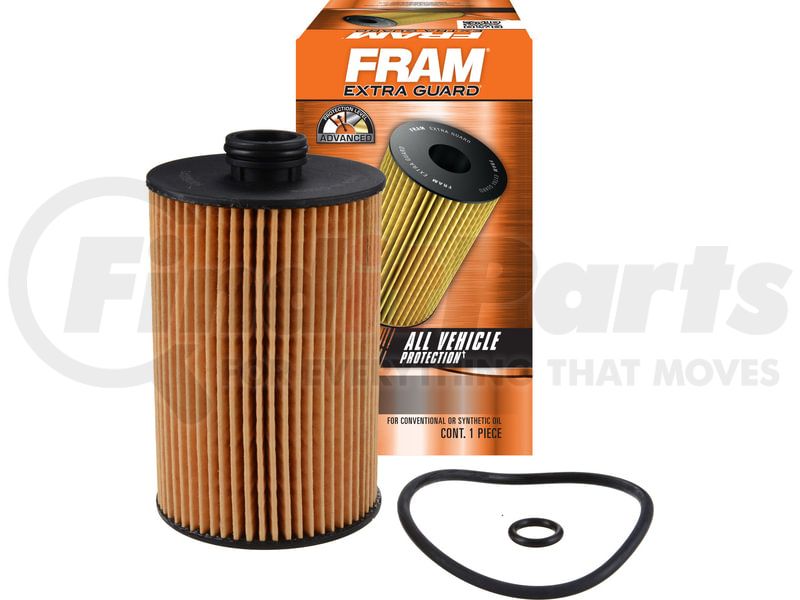

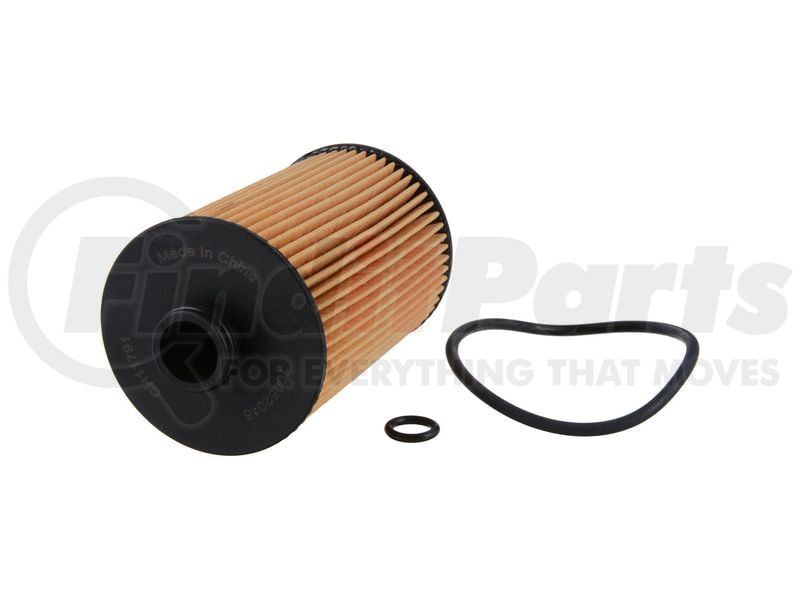

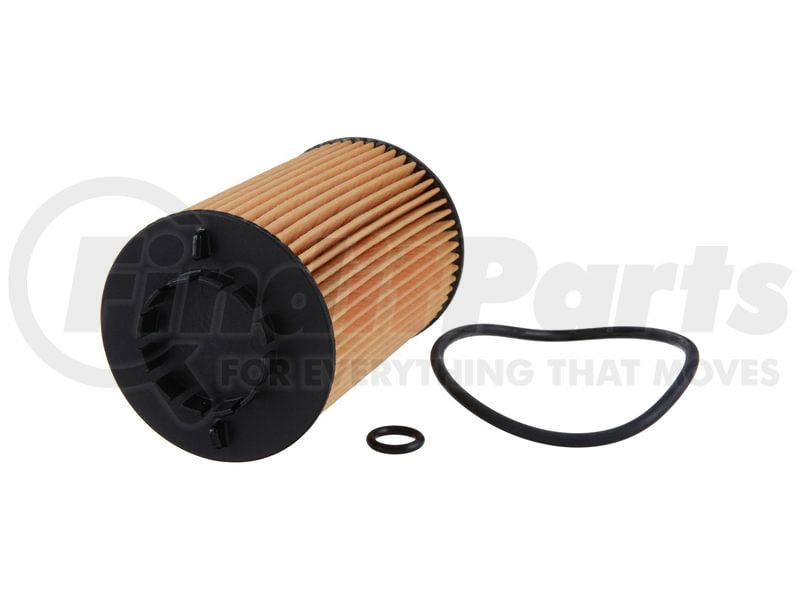

(888) 312-8812 Login SignupFRAM CH11791 Full-Flow Lube Cartridge
Tap to view 3 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
FRAM CH11791 Part Description
Manufacturer
Product Description
FRAM, CH11791, Oil Filter
Features & Benefits
- Proven protection for up to 10,000 miles (16,000 kilometers)
- Engineered for use with synthetic or conventional motor oils
- Filter media is a blend of fiber and resin that captures 95% of the dirt particles
- The perfect balance of dirt-trapping efficiency and dirt-holding capacity
- Includes gaskets and O-rings manufactured to endure the high pressures and high temperatures in today’s engines
Full-Flow Lube Cartridge
FRAM CH11791 Specifications
Product Attributes
| Filter Media Material | Cellulose/Synthetic Blend |
| Height | 4.685 IN |
| Grade Type | Regular |
| Filter Type | Cartridge |
| Non Slip Grip | No |
| Anti-Drain Back Valve | No |
| Bypass Relief Valve | No |
| Grade | Advanced |
| Housing Color | NA |
| Inside Diameter Bottom | Closed |
| Meets Or Exceeds Original Equipment Manufacturer Specifications | Yes |
| New Or Remanufactured | New |
| O-ring (1) Inside Diameter | 0.748 IN |
| O-ring (1) Outside Diameter | 0.846 IN |
| O-ring (1) Thickness | 0.098 IN |
| O-ring (2) Inside Diameter | 0.433 IN |
| O-ring (2) Outside Diameter | 0.531 IN |
| O-ring (2) Thickness | 0.098 IN |
| O-ring Inside Diameter | 3.071 IN |
| O-ring Outside Diameter | 3.201 IN |
| O-ring Thickness | 0.130 IN |
| O-Rings Included | Yes |
| Outer Diameter Bottom | 2.677 in |
| Outer Diameter Top | 2.677 in |
| Replacable Filter | Yes |
| Reusable | No |
| Top Inside Diameter | 0.760 in |
| Torque Nut | No |
| Washable | No |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100555410 |
| UNSPSC | 15121501 |
FRAM CH11791 Part Interchanges
| Brand | Part Number |
|---|---|
| Champ | P1019 |
| Wix | WL10350 |
| LUBER-FINER | P1019 |
| Coopers | FA6790ECO |
| Volkswagen | 079 115 561J, 079 198 405D |
| Purflux | L1070 |
| Tecnocar | OP1040 |
| UFI | 25.090.00 |
| STP | S11791 |
| PurolatorONE | PL21425 |
| Mighty Distributing System | M9014 |
| STP Filters | S11791 |
FRAM CH11791 Fits Vehicles
- Suzuki Aerio (2002)
- Audi S7 (2013-2018)
- Audi RS7 (2014-2018)
- Audi S6 (2013-2018)
- Audi S8 (2013-2018)
- Audi A8 Quattro (2013-2018)
