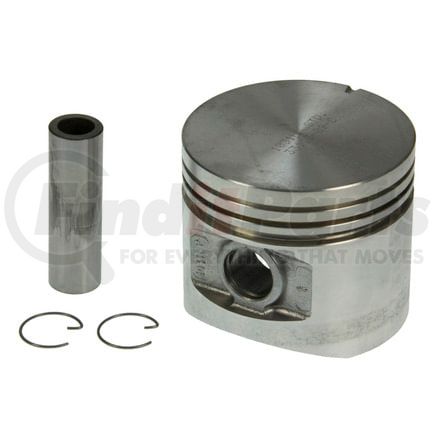

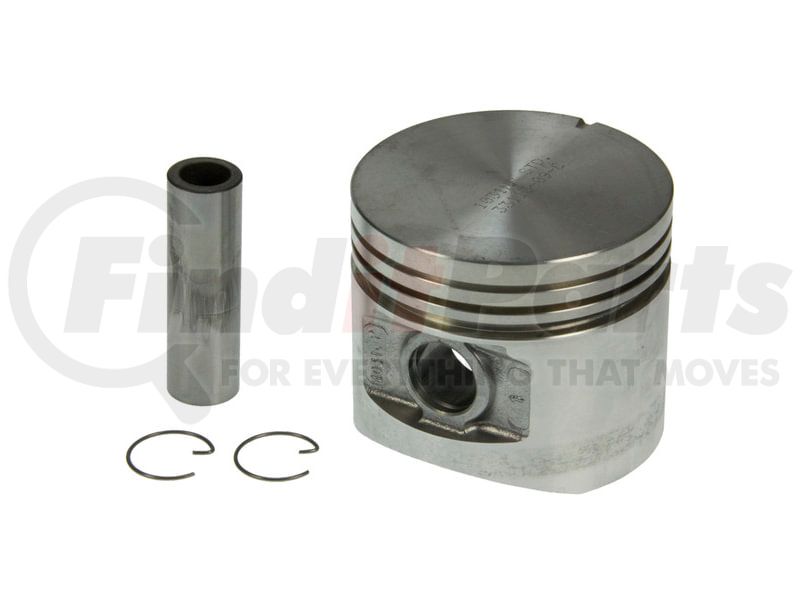

(888) 312-8812 Login SignupSEALED POWER 1031NP 30 Sealed Power 1031NP 30 Engine Piston Set
$51992
Package Price for 8 Units
@ $64.99 per unit
Limited availability at this price!
In Stock
Get it by Wednesday, Feb 4
SEALED POWER 1031NP 30 Part Description
Manufacturer
Product Description
Engine Piston Set
Features & Benefits
- Cast with FM413 Eutectic aluminum with 12% silicon for strength and durability
- Performance/dependability of OE pistons - high quality aluminum casting & machining provide reliability, durability & long life of part
- State-of-the-art manufacturing
- Exacting tolerances
- Meets or exceeds OEM specifications
- Up-tilt ring grooves improve piston to ring sealing & providing great blow-by control
SEALED POWER 1031NP 30 Specifications
Product Attributes
| Oversized | Yes |
| Top Compression Ring Thickness | 0.078125 IN |
| Second Compression Ring Thickness | 0.09375 IN |
| Oil Ring Thickness | 0.1875 IN |
| Piston Pin Outside Diameter | 0.9122 IN |
| Piston Head Type | Flat |
| Assembly Lubricant Included | No |
| Bore Diameter | 3.8000 IN |
| Piston Material | Cast Aluminum |
| Compression Height | 1.760 IN |
| Oversized Amount | 0.030 IN |
| Part Description | Engine Piston |
| Grade Type | Premium |
| Grade Type | Premium |
Additional Information
| Country of Origin (Primary) | IN |
| Canadian Harmonizing Tariff Code | 8409910010 |
| Harmonized Tariff Code (Schedule B) | 8409915085 |
| Harmonized Tariff Code (HTS) | 8409915085 |
| UPC | 00019826520678 |
SEALED POWER 1031NP 30 Fits Vehicles
- Ford Custom (1957)
- Mercury Custom (1956)
- Ford Custom 300 (1957)
- Mercury Voyager (1957-1959)
- Mercury Park Lane (1958-1960)
- Mercury Monterey (1956-1960)
- Mercury Montclair (1956-1960)
- Mercury Medalist (1956-1958)
- Mercury Country Cruiser (1959-1960)
- Mercury Commuter (1957-1960)
- Mercury Colony Park (1957-1960)
- Ford Victoria (1956-1957)
- Ford Thunderbird (1956-1957)
- Ford Sunliner (1956-1957)
- Ford Skyliner (1956-1957)
- Ford Ranch Wagon (1956-1957)
- Ford Park Lane Wagon (1956)
- Ford Mainline (1956)
- Ford Fairlane (1956-1957)
- Ford Del Rio Wagon (1957)
- Ford Customline (1956)
- Ford Country Squire (1956-1957)
- Ford Country Sedan (1956-1957)
- Ford Club (1956-1957)
