FRAM part description

Product Description

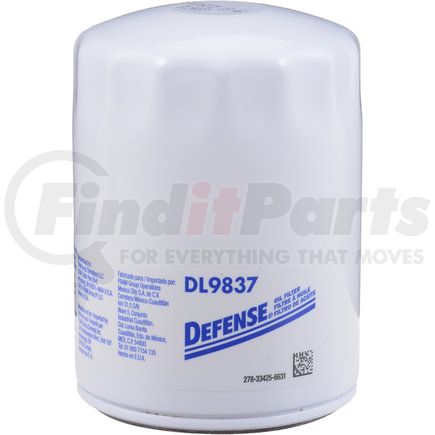

Defense Filters, DL9837, Oil Filters

Spin-on Oil Filter

Product Attributes

Anti-Drain Back Valve No
Attachment Type Spin-On
Bypass Relief Valve No
Filter Media Material Cellulose/Synthetic Blend
Filter Type Spin-On Canister
Gasket Inside Diameter 2.454 IN
Gasket Outside Diameter 2.75 IN
Gasket Thickness 0.188 IN
Gasket Type Base
Grade Advanced
Grade Type Regular
Height 4.111 IN
Housing Color White
Inlet Type Threaded
Inside Thread Diameter 13/16-16 IN
Meets Or Exceeds Original Equipment Manufacturer Specifications Yes
Non Slip Grip No
Outside Diameter 3 IN
Replacable Filter Yes
Reusable No
Thread Size Standard
Torque Nut No

Additional Information

Warranty Special See Rep
Warranty Special UOM SR
Warranty Time 30
Warranty Time UOM DA
Country of Origin (Primary) US
Harmonized Tariff Code (HTS) 8421230000
UPC 00009100537232
UNSPSC 15121501

Part Interchanges

Fits Vehicles

  • Suzuki Aerio (2002)
  • Saturn Relay (2006-2007)
  • Chevrolet Trailblazer EXT (2005-2006)
  • GMC Envoy XL (2005-2006)
  • GMC Envoy XUV (2005)
  • Hummer H3T (2009-2010)
  • Saturn Vue (2008-2010)
  • Saturn Aura (2007-2008)
  • Isuzu i-370 (2007-2008)
  • Isuzu i-290 (2007)
  • Isuzu Ascender (2007)
  • Buick Allure (2005-2007)
  • Buick Lucerne (2006-2011)
  • Chevrolet Monte Carlo (2006-2007)
  • Chevrolet Suburban 2500 (2006)
  • Buick Rainier (2006-2007)
  • Pontiac Montana (2006-2009)
  • Chevrolet Uplander (2006-2009)
  • Chevrolet Suburban 1500 (2006)
  • Chevrolet Malibu (2006-2010)
  • Cadillac XLR (2006-2009)
  • Cadillac DTS (2006-2011)
  • Buick Terraza (2006-2007)
  • Buick Rendezvous (2006)
  • Isuzu i-350 (2006)
  • Chevrolet Impala (2006-2011)
  • Hummer H3 (2006-2010)
  • Pontiac G6 (2006-2010)
  • Saab 9-7x (2005-2009)
  • GMC Envoy (2005-2009)
  • Chevrolet Trailblazer (2005-2009)
  • Chevrolet Avalanche 1500 (2005)
  • Cadillac SRX (2005-2009)
  • Cadillac STS (2005-2010)
  • Buick LaCrosse (2005-2007)
  • Chevrolet Colorado (2004-2012)
  • GMC Canyon (2004-2012)
