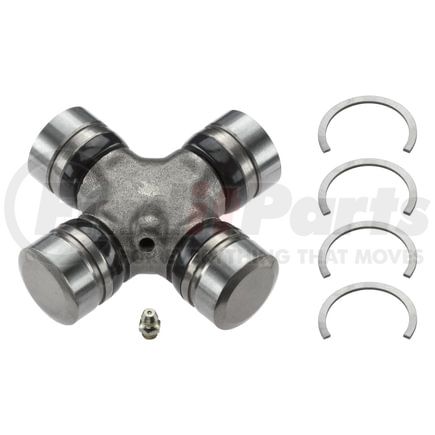

Name: Moog 374 MOOG 374 Greaseable Premium Universal Joint
SKU: 374
Price: 45.49 USD
Availability: InStock

MOOG part description

Engineered for optimal performance, MOOG® universal joints are machined to meet or exceed original equipment standards.

Over 70 years of aftermarket engineering and product expertise has made MOOG® an industry leader in driveline quality and customer satisfaction.

Greaseable - allows new grease to flush out contamination and moisture reducing corrosion and wear
Patented thrust washer technology absorbs axial loads preventing metal to metal contact
Exclusive anti-drainback design controls lubrication flow and prevents dry startup
Needle bearings and snap rings sourced from OE supplier
Nitrile rubber grease seals have compressed double lip design for protection from contaminants
Durable and strong with consistent heat treatment for good bearing hardness ratios

Part Specifications

U-JOINT SPECIFICATIONS

U-Joint Identification	4 Grooved Round Bearings
Bearing Type A	Round Grooved
Bearing Diameter A - Inch	1.375
Bearing Diameter A - mm	35
Length Measurement A	Outside of Groove to Outside of Groove
Length A - Inch	3
Length A - mm	76.2
Bearing Type B	Round Grooved
Bearing Diameter B - Inch	1.375
Bearing Diameter B - mm	35
Length Measurement B	Outside of Groove to Outside of Groove
Length B - Inch	3
Length B - mm	76.2
OE Series	Spicer 1480-WJ (SPL55)
Lubricateable	YES
Lube Fitting Location	Regular Lube Fitting in Cross
Image	UJoint_4Grooved.tif

Product Description

Greaseable Premium Universal Joint

Features & Benefits

BUILT TO LAST -- Rugged design specifically engineered for fleets, off-highway and commercial vehicles
STRONG AND DURABLE -- Bearing cups are cold-formed, case-hardened and precision ground for strength and durability
KEEPS DIRT OUT -- Abrasion-resistant nitrile seals provide ideal grease retention and protection from under-vehicle contaminants
GREASEABLE DESIGN -- Drilled and tapped grease fitting holes for easy servicing and cross trunnions with large grease reservoirs with radial grease channels for grease distribution
INHIBITS PREMATURE WEAR -- Cross trunnions ground to a 15-25 RMS finish for a smooth surface free of microscopic grooves that can cause premature wear
RELIABLE PERFORMANCE -- Internal anti-drainback valve integrated into thrust washer controls lubrication flow and prevents dry startup
RIGOROUS TESTING -- Comprehensive testing throughout design and development processes by MOOG engineers for quality you can count on

Product Attributes

Bearing Cap Axis 1 Diameter	1.375 IN
Bearing Cap Axis 1 Diameter	35 MM
Bearing Cap Axis 2 Diameter	1.375 IN
Bearing Cap Axis 2 Diameter	35 MM
Bearing Cap Type	4 Grooved Round Bearings
Bearing Type A	Round Grooved
Bearing Type B	Round Grooved
Length Axis 1	3 IN
Length Axis 1	76.2 MM
Length Axis 2	3 IN
Length Axis 2	76.2 MM
Length Measurement A	Outside of Groove to Outside of Groove
Length Measurement B	Inside of Groove to Inside of Groove plus thickness of 2 Lock Rings
LUBE FITTING LOCATION	Regular Lube Fitting in Cross
Greasable	YES
OE Series	Spicer 1480-WJ (SPL55)
U-Joint Identification	4 Grooved Round Bearings
Part Description	Universal Joint
Grade Type	Premium

Additional Information

Country of Origin (Primary)	MX
Canadian Harmonizing Tariff Code	8708991510
Harmonized Tariff Code (Schedule B)	8708996810
Harmonized Tariff Code (HTS)	8708996810
UPC	00080066607627

Part Interchanges

Fits Vehicles

Ford F-550 Super Duty (1999-2004, 2011-2015)
Ford F-450 Super Duty (1999-2004, 2011-2015)
Ford F-350 Super Duty (1999-2015)
Ford F-350 (1979, 1985-1997)
Ford F-250 Super Duty (1999-2015)
Ford F-250 (1978-1979)
Ford Excursion (2000-2005)
GMC V3500 (1987-1991)
GMC K3500 (1979-1986, 1988-1989)
GMC K35 (1977-1978)
Chevrolet V3500 (1989-1991)
Chevrolet V30 (1987-1988)
Chevrolet K3500 (1988-1989)
Chevrolet K30 (1977-1986)
Dodge W350 (1981-1993)
Dodge W300 (1977-1980)
Dodge W250 (1981-1993)
Dodge W200 (1977-1980)
Dodge Ram 3500 (1994-2002)
Dodge Ram 2500 (1994-2002)

For over 100 years, Moog® has been an industry leader in mid- to high-end aftermarket parts for steering, suspension, and driveline systems worldwide. Utilized by daily commuters to entire fleets, Moog parts have become synonymous with reliable performance that’s just as good or even better than their OE counterparts. Moog also incorporates innovative features in their products not found in competing products, such as patented forged steel bodies and metal “gusher” bearings that greatly reduce friction across moving components. The brand also leads the way in after-sales support, with comprehensive technical assistance and training materials available for customers around the world.
