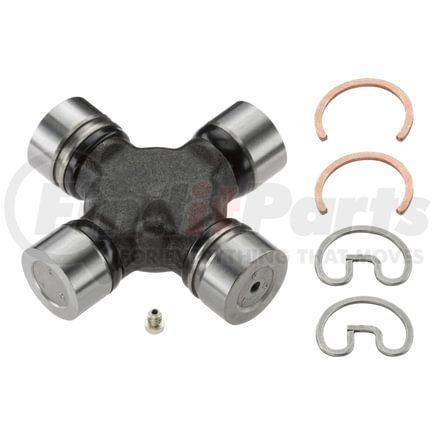

Name: Moog 290 MOOG 290 Greaseable Super Strength Universal Joint
SKU: 290
Price: 27.49 USD
Availability: InStock

MOOG part description

Engineered for optimal performance, the MOOG® greaseable Super Strength U-joint features Super Strength alloy steel crosses for higher torque and horsepower.

Over 70 years of aftermarket engineering and product expertise has made MOOG® an industry leader in driveline quality and customer satisfaction.

Super Strength alloy steel crosses for higher torque and horsepower
Flush lube fitting in the bearing cap for added strength
Exclusive MICRO SHIELD coating resists corrosion that may weaken the cross
Needle bearings and snap rings sourced from OE supplier
Nitrile rubber grease seals have compressed double lip design for protection from contaminants
Durable and strong with consistent heat treatment for good bearing hardness ratios

Part Specifications

U-JOINT SPECIFICATIONS

U-Joint Identification	2 Grooved and 2 Plain Round Bearings
Bearing Type A	Round Plain
Bearing Diameter A - Inch	1.063
Bearing Diameter A - mm	27
Length Measurement A	Outside of Bearing To Outside of Bearing
Length A - Inch	3.622
Length A - mm	92
Bearing Type B	Round Grooved
Bearing Diameter B - Inch	1.125
Bearing Diameter B - mm	28.6
Length Measurement B	Outside of Groove to Outside of Groove
Length B - Inch	2.56
Length B - mm	65
OE Series	Combination 354 x 534G
Lubricateable	YES
Lube Fitting Location	Regular Lube Fitting in Bearing
Dimension Across U-Joint A - Inch	2.34
Dimension Across U-Joint A - mm	59.436
Image	UJoint_2Grooved_2Plain.tif

Product Description

Greaseable Super Strength Universal Joint

Features & Benefits

BUILT TO LAST -- Rugged design specifically engineered for applications with higher torque and horsepower
COMPREHENSIVE COVERAGE -- Available for foreign and domestic nameplates
CORROSION PROTECTION -- Exclusive MICRO SHIELDâ„¢ coating protects against rust and corrosion
CORROSION PROTECTION -- Exclusive MICRO SHIELDa?? coating protects against rust and corrosion
GREASABLE DESIGN -- Bearing cups feature a radial design to allow 360 Degrees lubricant distribution to all bearing surfaces
KEEPS DIRT OUT -- Abrasion-resistant nitrile seals provide ideal grease retention and protection from under-vehicle contaminants
RIGOROUS TESTING -- Comprehensive testing throughout design and development processes by MOOG engineers for quality you can count on
STRONG AND DURABLE -- Bearing cups are cold-forged, case-hardened and precision ground while steel cross is forged and carburized heat treated for strength and durability

Product Attributes

Bearing Cap Axis 1 Diameter	1.063 IN
Bearing Cap Axis 1 Diameter	27 MM
Bearing Cap Axis 2 Diameter	1.125 IN
Bearing Cap Axis 2 Diameter	28.6 MM
Bearing Cap Type	2 Grooved & 2 Plain Round Bearings
Bearing Type A	Round Plain
Bearing Type B	Round Grooved
Length Axis 1	3.622 IN
Length Axis 1	92 MM
Length Axis 2	2.56 IN
Length Axis 2	65 MM
Length Measurement A	Outside of Bearing To Outside of Bearing
Length Measurement B	Inside of Groove to Inside of Groove plus thickness of 2 Lock Rings
LUBE FITTING LOCATION	Flush-type lube fitting in bearing
Greasable	YES
OE Series	Combination 354 x 534G
U-Joint Identification	2 Grooved & 2 Plain Round Bearings
Part Description	Universal Joint
Grade Type	Premium

Additional Information

Country of Origin (Primary)	MX
Canadian Harmonizing Tariff Code	8708991510
Harmonized Tariff Code (Schedule B)	8708996810
Harmonized Tariff Code (HTS)	8708996810
UPC	00080066605623

Part Interchanges

Fits Vehicles

GMC Sierra 1500 Classic (2007)
Chevrolet Silverado 1500 Classic (2007)
Buick Wildcat (1962)
Buick Estate Wagon (1961)
Cadillac Commercial Chassis (1960-1962)
Cadillac Series 75 Fleetwood (1958-1962)
Cadillac Series 62 (1958-1962)
Jeep TJ (2003-2006)
Isuzu i-370 (2007-2008)
Isuzu i-290 (2007-2008)
Isuzu i-350 (2006)
Isuzu i-280 (2006)
GMC Sierra 1500 HD (2005)
Chevrolet Silverado 1500 HD (2005)
Chevrolet Colorado (2004-2012)
GMC Canyon (2004-2012)
Pontiac Firebird (1967-1968)
Oldsmobile F85 (1970)
Oldsmobile Delta 88 (1968-1970)
Oldsmobile Delmont 88 (1968)
Oldsmobile Cutlass (1970)
Oldsmobile 98 (1968-1970)
Oldsmobile 442 (1968-1970)
Chevrolet Monte Carlo (1971-1972)
Chevrolet Chevelle (1971-1972)
Cadillac Eldorado (1957-1962)
Cadillac DeVille (1958-1962)
Buick LeSabre (1961-1962)
Buick Invicta (1961-1962)
Buick Electra (1961-1962)
Ford F-350 (1987-1993)
Ford Bronco (1987, 1989)
GMC Yukon XL 1500 (2000-2006)
GMC V3500 (1988-1989)
GMC Sierra 1500 (1999-2006)
GMC Sonoma (1994-1996)
GMC K3500 (1988-1989)
GMC K2500 Suburban (1994-1996)
GMC K2500 (1988-1991, 1994-1996)
GMC K1500 Suburban (1995-1996)
GMC K1500 (1988-1999)
GMC G2500 (1992-1995)
GMC G25 (1976-1978)
GMC C1500 Suburban (1979-1981, 1992-1993, 1995-1999)
GMC C1500 (1979-1981, 1988-1998)
Chevrolet V3500 (1989)
Chevrolet V30 (1988)
Chevrolet Suburban 1500 (2000-2006)
Chevrolet Silverado 1500 (1999-2006)
Chevrolet S10 (1994-1996)
Chevrolet K3500 (1988-1991)
Chevrolet K2500 Suburban (1994-1996)
Chevrolet K2500 (1988-1991, 1994-1996)
Chevrolet K1500 Suburban (1995-1996)
Chevrolet K1500 (1988-1999)
Chevrolet G20 (1976-1978)
Chevrolet C1500 Suburban (1992-1993, 1996-1999)
Chevrolet C1500 (1988-1998)
Chevrolet C10 (1979-1981)
Chevrolet Avalanche 1500 (2002-2006)
Jeep Wrangler (2003-2006)

For over 100 years, Moog® has been an industry leader in mid- to high-end aftermarket parts for steering, suspension, and driveline systems worldwide. Utilized by daily commuters to entire fleets, Moog parts have become synonymous with reliable performance that’s just as good or even better than their OE counterparts. Moog also incorporates innovative features in their products not found in competing products, such as patented forged steel bodies and metal “gusher” bearings that greatly reduce friction across moving components. The brand also leads the way in after-sales support, with comprehensive technical assistance and training materials available for customers around the world.
