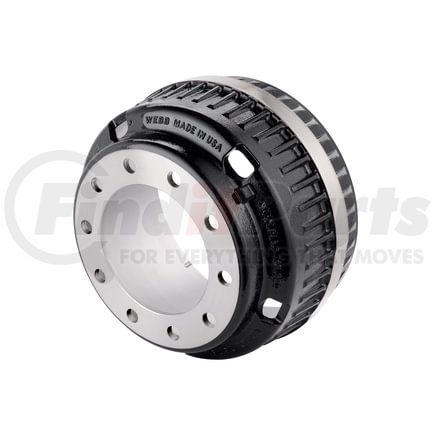

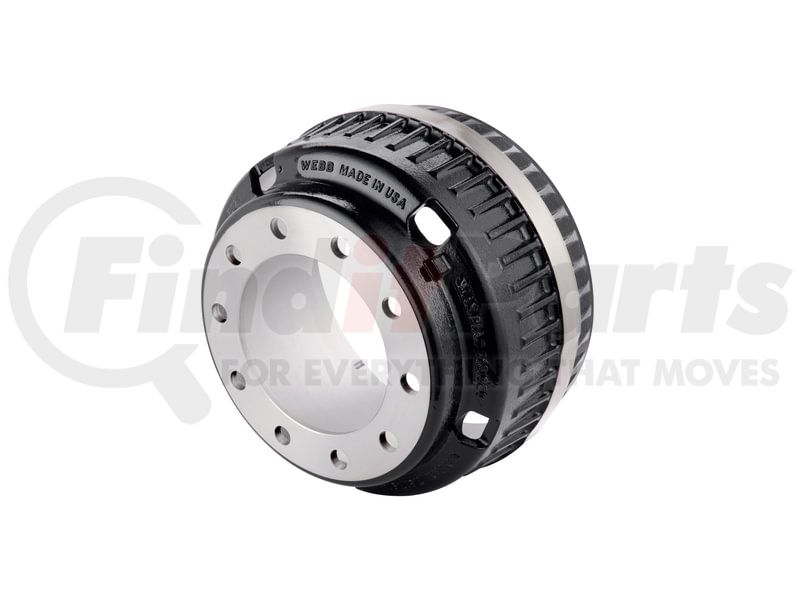

Webb 78500B - SEVERE DUTY 16.5 X 8.625 BAL

WEBB part description

DRUM INFORMATION

Drum Part Number	78500B
Weight	127
Brake Face Thickness	0.56
Drum Type
Mount	Outboard
Brake Surface Diameter	16.50
Overall Depth	11.46
Brake Surface Flat	9.06
Pilot Diameter	8.78
Bolt Circle Diameter	11.25
Bolt Hole (Number)	10
Bolt Hole Size	0.94
Maximum Wear Diameter	16.62
Notes

In business since 1946, Webb® has been a trusted brand for high-quality brake and wheel hub components in the heavy duty transportation industry. The company maintains an extensive catalog of OEM and aftermarket brake drums, brake rotors and calipers, and wheel hubs for Class 6, 7, and 8 trucks and heavy duty trailers. Each Webb product is made of premium materials and engineered for reduced weight without compromising structural strength or balance. All parts are also manufactured using the latest innovations, including advanced wear indicators and cool running vent technology to help minimize wear and make maintenance and repairs easier. Combined with a first-class customer service and after-sales support, customers can count on Webb products to keep their trucks running safely and smoothly for years to come.
