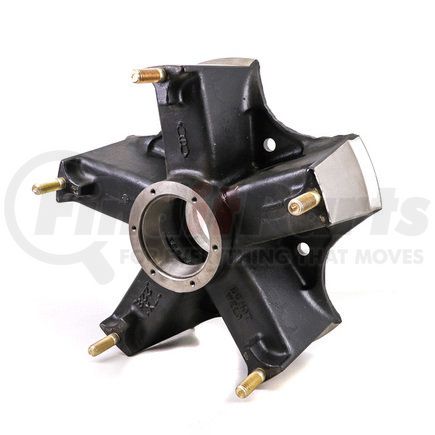

Accuride TX228K - Trailer 5 Spoke Wheel Sub-Assy - Rockwell RQ Axle (Gunite)
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
ACCURIDE part description
The Gunite brand product line includes 100% made in the USA brake drums, disc wheel hubs, spoke wheels and rotors, as well as slack adjusters, for the heavy- and medium-duty trucking, off-highway and bus markets and their related aftermarkets. The Gunite product search includes numerical, interchange/cross-reference, dimensional, application, and conversion features to make it easy to find the exact Gunite wheel end product you need.
| Gunite Part Number: | TX228K | |
| Aftermarket Status: | Active | |
| Captive Part Number To: | ||
| O.E. Service Replacement: | ||
| Limitations: | ||
| Aftermarket Replacement: | ||
| Limitations: | ||
| Spoke Wheel Specifications: | ||
| Finished Weight: | 79 | |
| Spoke Wheel Capacity (lbs): | 12250 | |
| Number of Spokes: | 5 | |
| Spoke Wheel Size: | 20 | |
| Rim Size: | 8.0 Maximum | |
| Axle Group 1: | T5 | |
| Axle Group 2: | ||
| Outer Bearing Cup: | HM212011 | |
| Outer Bearing Cone: | HM212049 | |
| Inner Bearing Cup: | HM218210 | |
| Inner Bearing Cone: | HM218248 | |
| Bearing Cup Spacing: | 3.34 | |
| A-Drive Stud/Hub Cap Bolt Circle: | 5.5 | |
| B-Drive Stud/Hub Cap Hole Pattern: | (6) .31-18 | |
| C-No of Rim Studs: | 5 | |
| Rim Stud Size: | 0.75 | |
| D-No of Drum/Rotor Bolts: | 5 | |
| Drum/Rotor Bolt Size: | 0.75 | |
| E-Spoke Offset: | -1.8 | |
| F-Drum/Rotor Mount Offset: | -1.5 | |
| G-Drum/Rotor Pilot Diameter: | 9.44 | |
| H-Drum/Rotor Bolt Circle: | 11 | |
| I-Seal Bore Diameter: | 6 | |
| J-Overall Length: | 6.94 | |
| K-Spoke Length: | 6.56 | |
| Brake Drum Applications: | ||
| ||
| Disc Brake Rotor Applications: | ||
| ||
| Service Hardware: | ||
| Drum Bolt Part No: | W833 | |
| Rotor Screw/Bolt Part No: | ||
| Hub Cap Part No: | WP180 | |
| Cap Screw/Stud Part No: | ||
| Hub Cap Gasket Part No: | WP178 | |
| Drum/Rotor Washer Part No: | W834 | |
| Hub Cap Bolt Part No: | WP5 | |
| Drum/Rotor Locknut Part No: | W823 | |
| Hub Cap Lockwasher Part No: | WP593-05 | |
| Grease Slinger Part No: | WP265 | |
| Drive Stud Part No: | ||
| Rim Stud Part No: | W855 | |
| Drive Nut Part No: | ||
| Rim Nut Part No: | WP148 | |
| Drive Lockwasher Part No: | ||
| Rim Clamp/Spacer Band Part No's: | W866 | WP45 WP682 | WP76 W1110 | WP63 View Clamp View Band | |
| Exciter (Tone) Ring Part No's: |
| |
| Special Information: | ABS version of TX887K (1). Hub supplied LESS Exciter Ring. | |
| Dimensions in parentheses () indicate measurement is inboard of inner cup seat. | ||
