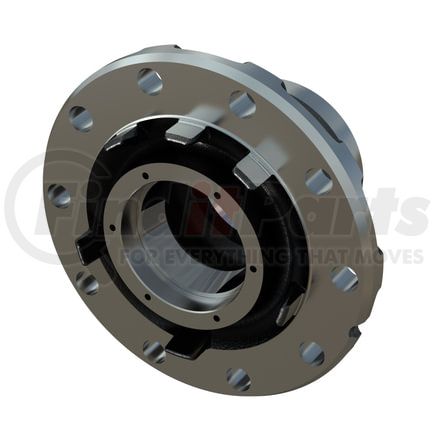

ACCURIDE part description

Technical Specifications

Aftermarket Status Active
Finished Weight 53
Special Information ABS version of HF650K. Hub supplied LESS Exciter Ring.
Axle Group F27
Axle Group F28
Outer Bearing Cup 552A
Outer Bearing Cone 555S
Inner Bearing Cup 6420
Inner Bearing Cone 6461A
Bearing Cup Spacing 3.02
Hub Cap Part No WP575
Hub Cap Gasket Part No WP178
Hub Cap Bolt Part No WP5
Hub Cap Lockwasher Part No WP593-05
Exciter Tone Ring Part Nos W1292 View
Disc Wheel Hub Capacity lbs 11000
Mount Type Outboard
Brake Component Description Brake Drum
Drive StudHub Cap Bolt Circle 5.5
Drive StudHub Cap Hole Pattern (6) .31-18
Number of Wheel BoltsStuds 10
Wheel BoltStud Size 22mm
Disc Wheel Offset with Brake Drum 4.91
DrumRotor Mount Offset 4.29
DrumRotor Pilot Diameter 8.78
Disc Wheel Bolt Circle 11.25
Seal Bore Diameter 5.9
Overall Length 7.47
Part No 3686 - 15.00x6.00 3710 - 16.50x5.00 3687 - 16.50x6.00 3687X - 16.50x6.00 3710 - 16.50x5.00 3710X - 16.50x5.00 3796 - 16.50x7.00 3796X - 16.50x7.00 View
Disc WheelBolt Stud Part No W1164 - Hub Pilot, Steer, Steel W1327 - Hub Pilot, Steer, Aluminum W1270 - Hub Pilot, Steer, Duplex W1324 - Hub Pilot, Steer, MW, Steel W1164 - Hub Pilot, Steer, MW, Aluminum W1164 - Hub Pilot, Steer, MW, Duplex View
Flanged Nut Part No W1338

Accuride® is a proud manufacturer of durable and dependable wheels for commercial and passenger vehicles. It is committed to delivering only the highest quality products to OEMs and the aftermarket, with the Accuride Quality and Lean Manufacturing System (QLMS) in place at each of its ISO/IATF 16949SO-certified facilities. Although this brand is more popular for its aluminum and steel commercial vehicle wheels, it also offers some of the best brake drums, brake rotors, slack adjusters, and hub assemblies in the market today. All these components are designed and produced following the strictest standards for maximum performance, durability, and reliability.
