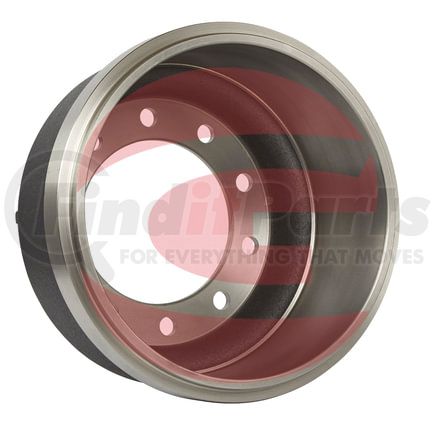

Accuride 3136B - Brake Drum, Cast Iron, Inboard, 16.50x7.00 (Gunite)
$20149
MSRP: $475.33
Save: $273.84
In stock
limited availability at this price!
. Learn more
ACCURIDE part description
Technical Specifications
| Aftermarket Status | Active |
| Finished Weight | 106 |
| Maximum Wear Diameter | 16.62 |
| Drum Mount | Inboard |
| Drum Type | CAA |
| Wheel Type | Spoke |
| Overall Diameter | 18.75 |
| Dust Shield Recess Diameter | 17.76 |
| Dust Shield Recess Depth | 0.63 |
| Brake Size | 16.50x7.00 |
| Brake Surface Diameter | 16.5 |
| Brake Surface Width | 7.44 |
| Mounting Flange Diameter | 14.25 |
| Overall Depth | 8.03 |
| Pilot Diameter | 14.25 |
| Bolt Circle Diameter | 12.75 |
| Number of Bolt Holes | 5 |
| Bolt Hole Size | 0.78 |
| Squealer Band Width | 1.69 |
| Mounting Flange Thickness | 0.59 |
| Outside Sidewall Diameter | 17.74 |
| Sidewall Offset | 0.59 |
| Inside Finished Diameter | 13.5 |
| Brake Size | 7 |
| Bolt Circle Diameter (In.) | 16.5 |
| Bolt Holes And Size | 5.00 |
| Overall Depth (In.) | 8.03 |
| Pilot Diameter (In.) | 14.25 |
| Brake Type | CAA |
Accuride® is a proud manufacturer of durable and dependable wheels for commercial and passenger vehicles. It is committed to delivering only the highest quality products to OEMs and the aftermarket, with the Accuride Quality and Lean Manufacturing System (QLMS) in place at each of its ISO/IATF 16949SO-certified facilities. Although this brand is more popular for its aluminum and steel commercial vehicle wheels, it also offers some of the best brake drums, brake rotors, slack adjusters, and hub assemblies in the market today. All these components are designed and produced following the strictest standards for maximum performance, durability, and reliability.
