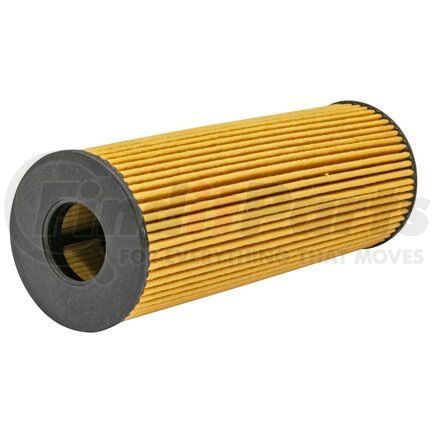

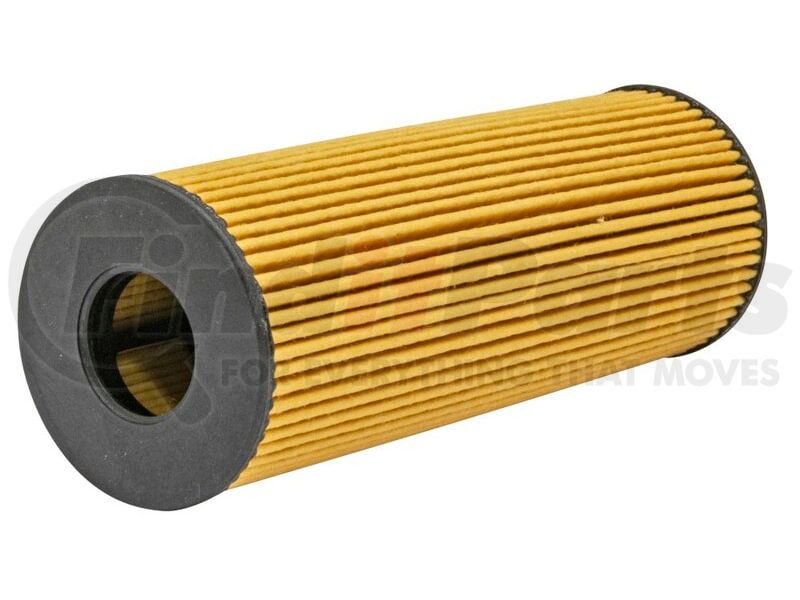

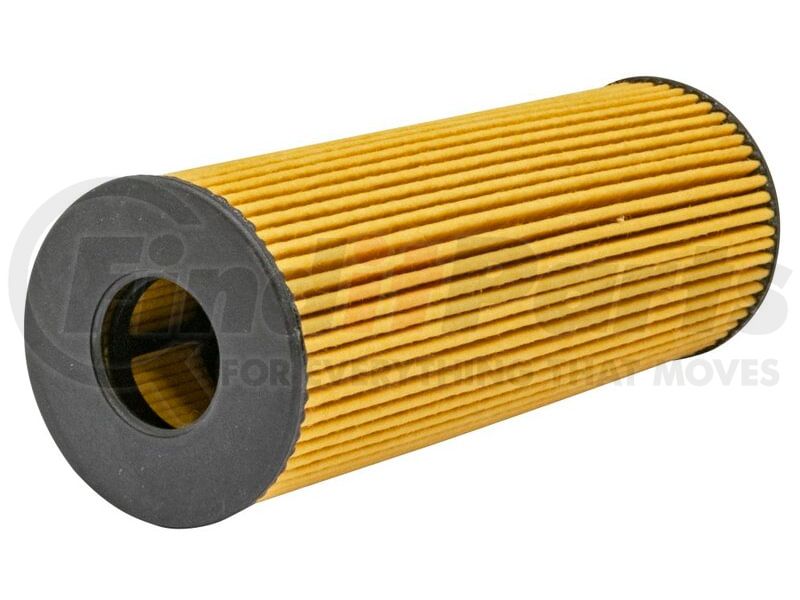

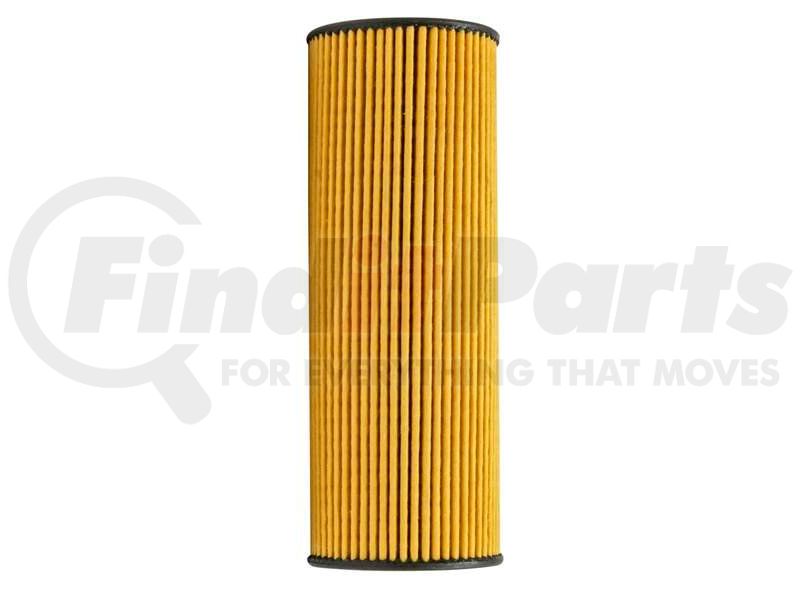

FRAM CH11955 - Full-Flow Lube Oil Filter
$1549
MSRP: $18.27
Save: $2.78
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
FRAM part description
Product Description
FRAM, CH11955, Oil Filter
Features & Benefits
- Proven protection for up to 10,000 miles (16,000 kilometers)
- Engineered for use with synthetic or conventional motor oils
- Filter media is a blend of fiber and resin that captures 95% of the dirt particles
- The perfect balance of dirt-trapping efficiency and dirt-holding capacity
- Includes gaskets and O-rings manufactured to endure the high pressures and high temperatures in today’s engines
Cartridge Oil Filter
Product Attributes
| Filter Media Material | Cellulose/Synthetic Blend |
| Height | 5.354 IN |
| Grade Type | Regular |
| Filter Type | Cartridge |
| Non Slip Grip | No |
| Anti-Drain Back Valve | No |
| Bypass Relief Valve | No |
| Grade | Advanced |
| Housing Color | NA |
| Inside Diameter Bottom | 0.851 IN |
| Meets Or Exceeds Original Equipment Manufacturer Specifications | Yes |
| New Or Remanufactured | New |
| O-ring (1) Inside Diameter | 0.276 IN |
| O-ring (1) Outside Diameter | 0.422 IN |
| O-ring (1) Thickness | 0.146 IN |
| O-ring Inside Diameter | 2.252 IN |
| O-ring Outside Diameter | 2.374 IN |
| O-ring Thickness | 0.122 IN |
| O-Rings Included | Yes |
| Outer Diameter Bottom | 1.942 in |
| Outer Diameter Top | 1.942 in |
| Replacable Filter | Yes |
| Reusable | No |
| Top Inside Diameter | 0.851 in |
| Torque Nut | No |
| Washable | No |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100558688 |
| UNSPSC | 15121501 |
Part Interchanges
- Motorcraft FL-2062
- Pennzoil PZ190
- Purolator L38154
- Quaker State QS190
- Wix WL10050
- LUBER-FINER P2062
- Carquest 94103
- Service Champ CF8154
- Warner WP2062
- Ford FT4E-6714-AA
- Performax PO-190
- NAPA ProSelect Filters 2100050
- Valvoline VO-115
- STP S11955
- Parts Master WL610050
- Premium Guard PG8154
- PUREPRO PL8154
- NAPA 100050
- Tough Guard TG11955
- Ford FT4Z-6731-A
- Motorcraft FL-2062A
- K&N HP-7037
- Service Champ P2062
- Ford KU2Z-6731-A
- Mobil 1 M1C-351A
- MicroGard MGL10050
- STP S11995XL
- PureZone 8-10050
- FRAM Tough Guard TG11955
- FRAM Ultra Synthetic XG11955
- FRAM Core COR11955ACC
- FRAM Force FF11955
- FRAM Titanium FS11955
- FRAM Drive FD11955
- Champ P2062
- Mighty Distributing System M9015
- STP Filters S11955
- Defense Filters DL11955
- ECOGARD X10387
- Warner Filters WP2062
- FRAM Synthetic Endurance FE11955
- Ford KU2J-6731-AA
- MicroGard Select MSL10050
- STP Filters S11955XL
- Parts Master WL610050X
Fits Vehicles
- Suzuki Aerio (2002)
- Ford Ranger (2024-2025)
- Ford Explorer (2020-2025)
- Lincoln Nautilus (2019-2023)
- Ford Fusion (2017-2019)
- Lincoln Aviator (2020-2025)
- Ford Bronco (2021-2024)
- Ford Police Interceptor Utility (2020-2024)
- Lincoln MKX (2016-2018)
- Lincoln MKZ (2017-2020)
- Lincoln Continental (2017-2020)
- Ford F-150 (2015-2024)
- Ford Mustang (2016-2021)
- Ford Edge (2015-2024)
