CENTRIC 123.65004 Part Description
Manufacturer
Product Description

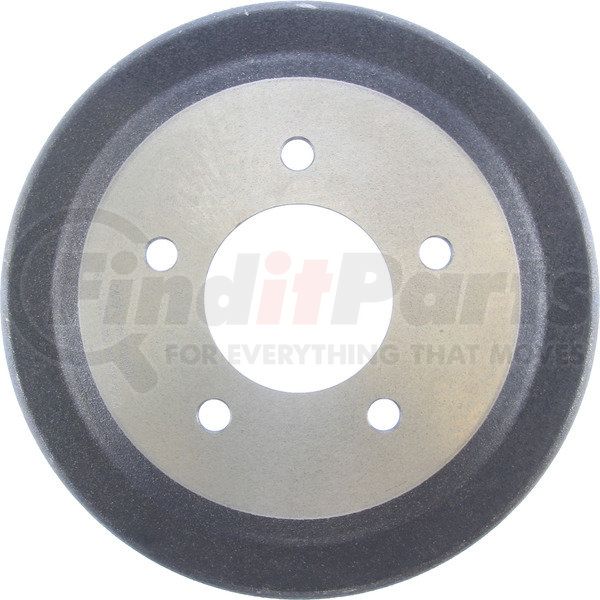

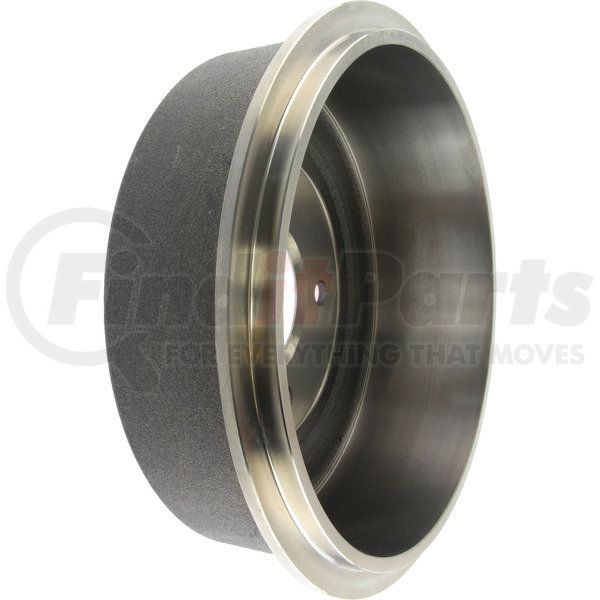

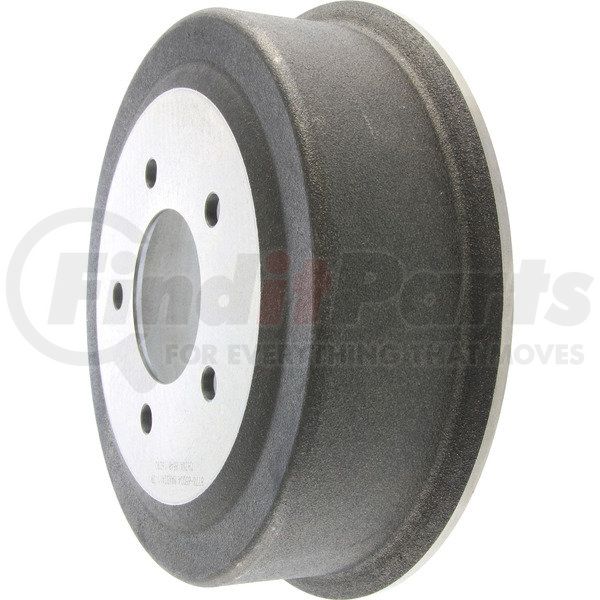

C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
CENTRIC 123.65004 Specifications
Product Attributes
| Weight [cntrc] Kgs | 10.455 |
| Weight [cntrc] Lbs | 23.000 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 139.700 |
| Bolt Circle Diameter [cntrc] In | 5.500 |
| Hub Hole / Register [cntrc] Mm | 90.424 |
| Hub Hole / Register [cntrc] In | 3.560 |
| Height [cntrc] Mm | 105.410 |
| Height [cntrc] In | 4.150 |
| Friction Surface Width [cntrc] Mm | 87.376 |
| Friction Surface Width [cntrc] In | 3.440 |
| Product Grade [cntrc] | Standard |
| Nominal Drum Diameter | 11.000 IN |
| Nominal Drum Diameter | 279.400 MM |
| Mounting Hole Diameter | 0.600 IN |
| Mounting Hole Diameter | 15.240 MM |
| Outer Cooling Fins | No |
| Outside Diameter | 12.870 IN |
| Outside Diameter | 326.898 MM |
| Bolt Hole Quantity | 5 |
| Maximum Brake Diameter (Discard) | 11.120 IN |
| Maximum Brake Diameter (Discard) | 282.400 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590014013 |
CENTRIC 123.65004 Cross References
CENTRIC 123.65004 Fits Vehicles
- Ford E-200 Econoline (1969-1974)
