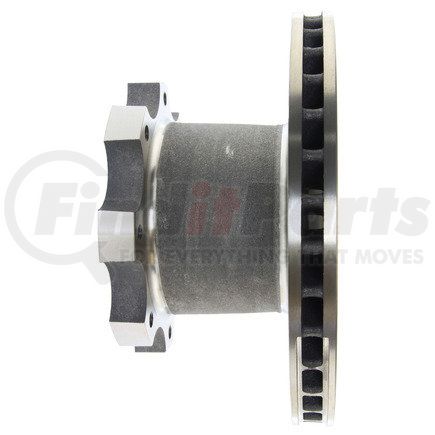

Centric 121.75004 - C-Tek Standard Brake Rotor
$20949
MSRP: $259.36
Save: $49.87
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
C-Tek Standard Brake Rotor
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
Product Attributes
| Vane Style [cntrc] | Straight |
| Notes [cntrc] | U Shaped, Bolt on ABS Ring |
| Weight [cntrc] Kgs | 15.500 |
| Disc Mounting [cntrc] | Behind the Hub |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 0 |
| Weight [cntrc] Lbs | 34.100 |
| Product Grade [cntrc] | Standard |
| Discard Thickness | 1.059 IN |
| Discard Thickness | 26.900 MM |
| Nominal Thickness | 1.177 IN |
| Nominal Thickness | 29.900 MM |
| Overall Height | 160.500 MM |
| Overall Height | 6.319 IN |
| Outside Diameter | 323.000 MM |
| Outside Diameter | 12.717 IN |
| Mounting Bolt Hole Quantity | 8 |
| ABS Tone Ring Included | Yes |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 13.000 IN |
| Bearings Included | No |
| Center Hole Diameter | 144.100 MM |
| Center Hole Diameter | 5.673 IN |
| Mounting Bolt Hole Circle Diameter | 7.717 IN |
| Mounting Bolt Hole Circle Diameter | 196.000 MM |
| Mounting Bolt Hole Diameter | 0.050 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 889590012941 |
Part Interchanges
CENTRIC 121.75004 Cross Reference
We have 1 alternatives for the 121.75004 by CENTRIC:
Fits Vehicles
- Workhorse W42 (2006-2011)
- Hino 165 (2005-2010)
- Workhorse Custom Chassis W42 (2006-2008)
