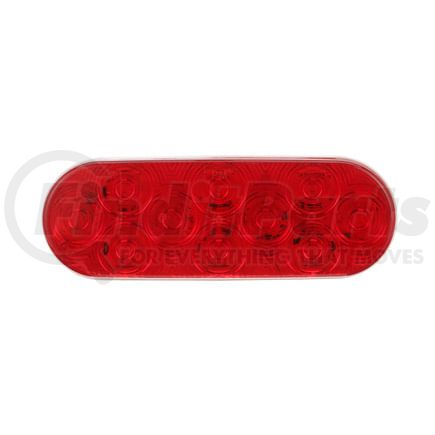

Peterson Lighting 821R-10 - 821R-10/822R-10 LumenX® Oval LED Stop, Turn and Tail Lights - Grommet Mount
- Part Number
- 821R-10
- Manufacturer
- PETERSON LIGHTING
- Description
-
821R-10/822R-10 LumenX® Oval LED Stop, Turn and Tail Lights - Grommet Mount
details
$11094
Package Price for 6 Units
@ $18.49 per unit
In stock
limited availability at this price!
. Learn more
PETERSON LIGHTING part description
821R-10/822R-10 LumenX® Oval LED Stop, Turn and Tail Lights
Features & Benefits
- New white diodes behind red lens
- 10-Diode, Oval Stop, Turn, & Tail Lights
- Advanced optics fully illuminate lens
- Regulated design provides voltage protection and consistent light output over entire voltage range
- 822-10 has flange welded to light, forming a single unit
- 821-10 has skirted weld joint for added protection against moisture
- 9-32 volt operating range is compatible with 12V and 24V vehicles
- Meets FMVSS 108 req. in horizontal, vertical or any 360° position
Product Description
LED STOP/TURN/TAIL, OVAL, GROMMET-MOUNT, 6.5"X2.25", MV
Features & Benefits
- 11 diodes.
- Lumenx® lens and circuitry.
- Made in USA.
- Multivolt version available.
- Voltage Regulated.
- White diodes behind red lens.
- Advanced optics fully illuminate lens.
- Industry-standard PL3 socket integrated into housing.
- Regulated design provides voltage protection and consistent light output over a wide voltage range.
- 822-10 has flange welded to light, forming a single unit.
- 9-32 volt operating range is compatible with 12V and 24V vehicles.
- Meets FMVSS 108 requirements in horizontal, vertical or any 360° position.
- 821 kit includes light, grommet and 421-491 plug.
- 822 kit includes light and 421-491 plug.
421-18: grommet (poly pack - std qty 12)
Product Attributes
| Bulb Technology | LED |
| Bulb/diode Count | 10 |
| California Proposition 65 Required | Y |
| Container Type | poly bag |
| Family | LumenX |
| Height | 2.31 in |
| Integral Reflex | N |
| Length | 6.5 in |
| Lens Color | red |
| Light Color | red |
| Marine Use | Y |
| Maximum Voltage | 32 Volts |
| Minimum Voltage | 9 Volts |
| Mounting Type | grommet |
| Multi-volt | Y |
| Regulatory Compliance | DOT |
| Shape | oval |
| Termination | PL3 |
| Voltage | 24 Volts |
| Width | 1.62 in |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8512204000 |
| UPC | 00044464995229 |
| VMRS Code | 034002059 |
PETERSON LIGHTING 821R-10 Cross Reference
We have 1 alternatives for the 821R-10 by PETERSON LIGHTING:
Peterson Lighting® is a family-owned company that produces and distributes vehicle safety lighting systems mirrors, and other related safety products and accessories. It has been in the business for 75 years, and currently, it offers over 2,200 products designed for various applications, including tilt-bed and cargo vehicles and light- and medium-duty trailers. Peterson Lighting believes that full commitment to quality is its responsibility as a market leader. All its components are designed and manufactured only in its ISO 9001/QS-9000-certified facility in Grandview, MO. This facility is handled by knowledgeable and highly skilled specialists, who are as dedicated and passionate as the company when it comes to quality.
