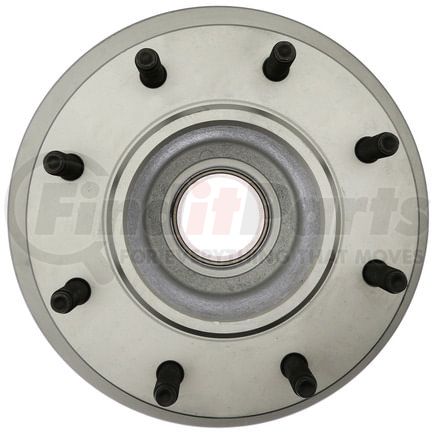

Raybestos 681785 - Raybestos Specialty - Truck Brake Rotor
$50849
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
RAYBESTOS part description
Product Description
Raybestos Specialty - Truck Brake Rotor
Application Summary
2022-2013 Ford F-350 Super Duty Front
Product Attributes
| ABS Tone Ring Included | Yes |
| Center Hole Diameter | 2.543 IN |
| Center Hole Diameter | 64.6 MM |
| 9565 | Conventional |
| Discard Thickness | 1.433 IN |
| Discard Thickness | 36.4 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 8.071 IN |
| Inside Diameter | 205 MM |
| Mounting Bolt Hole Circle Diameter | 7.874 IN |
| Mounting Bolt Hole Circle Diameter | 200 MM |
| Mounting Bolt Hole Diameter | 0.602 IN |
| Mounting Bolt Hole Diameter | 15.3 MM |
| Mounting Bolt Hole Quantity | 8 |
| Nominal Thickness | 1.496 IN |
| Nominal Thickness | 38 MM |
| Outside Diameter | 14.291 IN |
| Outside Diameter | 363 MM |
| Overall Height | 8.425 IN |
| Overall Height | 214 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 8 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| UPC | 00887213156867 |
Part Interchanges
- Ford DC3Z1102A
- Ford DC3Z1102C
- Ford HC3Z1102B
- Ford HC3Z1102J
- Motorcraft BRRF311
- Motorcraft BRRF375
- BrakeBest 670311RGS
- BrakeBest 681785
- BrakeBest 681785FZN
- BrakeBest 681785R
- Centric Parts 120.65142
- Centric Parts 121.65142
- Centric Parts 126.65142SL
- Centric Parts 126.65142SR
- Centric Parts 127.65142L
- Centric Parts 127.65142R
- Centric Parts 320.65142F
- Dura Corp BR901300
- Newtek Automotive USA R1300
- Wagner Brake BD180711E
- PowerStop PSR6670311
- DuraGo BR901300
- Qualis 42294
- Motorcraft BRRF478
- Ford PC3Z1102B
RAYBESTOS 681785 Cross Reference
We have 19 alternatives for the 681785 by RAYBESTOS:
- FORD DC3Z1102A
- FORD DC3Z1102C
- FORD HC3Z1102B
- FORD HC3Z1102J
- MOTORCRAFT BRRF375
- MOTORCRAFT BRRF311
- BRAKEBEST 670311RGS
- BRAKEBEST 681785
- BRAKEBEST 681785FZN
- BRAKEBEST 681785R
- CENTRIC 120.65142
- CENTRIC 121.65142
- CENTRIC 126.65142SL
- CENTRIC 126.65142SR
- CENTRIC 127.65142L
- CENTRIC 127.65142R
- CENTRIC 320.65142F
- DURA CORP BR901300
- NEWTEK AUTOMOTIVE R1300
Fits Vehicles
- Ford F-450 Super Duty (2018)
- Ford F-250 Super Duty (2014-2016)
- Ford F-350 Super Duty (2013-2023)
