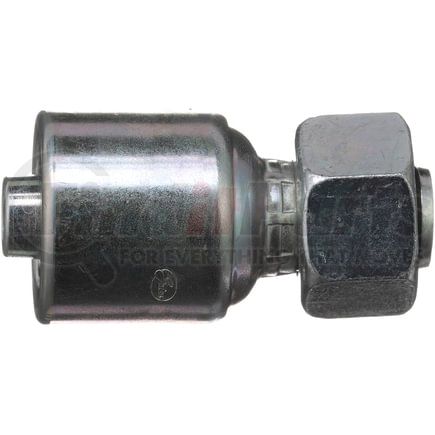

(888) 312-8812 Login SignupGATES G25645-0615 Female DIN 24 Cone Swivel - Light Series with O-Ring (MegaCrimp)
Tap to view 3 more
$3649
Limited availability at this price!
In Stock
Get it by Wednesday, Feb 18
GATES G25645-0615 Part Description
Manufacturer
Product Description
Female DIN 24 Cone Swivel - Light Series with O-Ring (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25645-0615 Specifications
Product Attributes
| Coupling Description | MegaCrimp Female DIN 24 Cone Swivel - Light Series w/ O-Ring |
| Industrial Description | 6G-15FDLORX |
| Thread Size | M22X1.5 |
| Inside Diameter | .375 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Outside Diameter | 15 MM |
| Nut Hex Size | 27 MM |
| Cut-Off Length | 1.03 IN |
| Length | 2.23 IN |
| Seal Type | Mated Angle w/O-Ring |
| Termination | DIN |
| O-Ring Location | On Female w/Inverted Nose Seat |
| Seat Angle | 24 |
| DIN Series | Light |
| Gender | Female |
| Bent Tube Angle | Straight |
| Swivel | Yes |
| Inside Diameter | 9.5 MM |
| Cut-Off Length | 26.1 MM |
| Length | 56.7 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | CZ |
| Stock Status | S |
| UPC | 00770075613978 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25645-0615 Cross References
| Brand | Part Number |
|---|---|
| Continental Belt | B2-DLFX-0622 |
| Dayco | 101706 |
| N/A | 04032562, E06-22FML, M21513-06-22 |
| NAPA | G25645-0615 |
