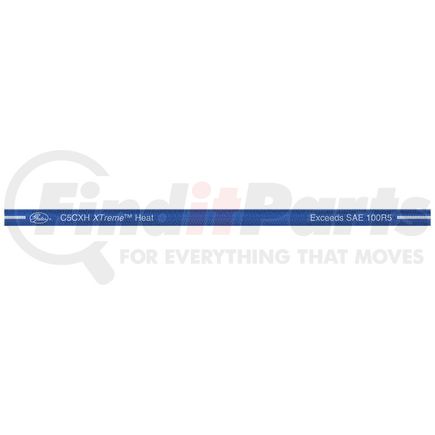

Gates 86994 - C5CXH Xtreme Heat Hose - SAE 100R5
$71999
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
C5CXH Xtreme Heat Hose - SAE 100R5
Features & Benefits
- For use with C5 and C5X Field Attachable Couplings [G34 Series], and crimp options for MegaCrimp [G25 Series] and GlobalSpiral [G20 Series], depending on size
- Blue, oil and mildew resistant polyester/textile braid cover
- Meets the requirements of SAE 100R5 for hydraulic applications
- DOT FMVSS 106-74 Type AII and SAE J1402 Type AII for (-4 to -12)
- DOT FMVSS 106–74 Type AII and SAE J1402 Type AII for (-4 to -12)
- Temperature Range: -40 Deg. F to +302 Deg. F (-40 Deg. C to +150 Deg. C)
- NOTE: Federal law requires registration with the Department of Transportation for anyone producing air brake hose assemblies with swaged or crimped fittings
- NOTE: See Engineering and Technical Data Section of the Gates Hydraulic Catalog for compliance
Product Attributes
| Product Type | C5CXH XTreme Heat Hose - SAE 100R5 |
| Industrial Description | 8C5CXHX50FT |
| Type | Fleet Application & Maintenance Hose |
| Hose Pressure Description | Medium Pressure |
| Maximum Working Pressure | 2000 PS |
| Burst Pressure | 8000 PS |
| Temperature Rating | -40 Deg. F to +302 Deg. F (-40 Deg. C to +150 Deg. C) |
| Length | 50 FT |
| 9941 | 8 |
| Inside Diameter | .406 IN |
| Outside Diameter | .77 IN |
| 9879 | 4.6 IN |
| Tube Description | Black, Oil & Heat Resistant, Synthetic Polymer Tube |
| Hose Material | CPE - Type J |
| Reinforcement Material | Braided High Tensile Wire & Textile |
| Cover Material | Polyester & Textile Braid |
| Cover Type | Oil & Mildew Resistant |
| Cover Color | Blue |
| 9856 | C5X Field Attach, MegaCrimp |
| 9453 | 100R5 |
| 9954 | N/A |
| 9953 | N/A |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 4009410000 |
| UPC | 00770075567318 |
| VMRS Code | 059032029 |
| UNSPSC | 40142000 |
Part Interchanges
California Proposition 65 Warning
California Proposition 65 Warning
WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)
