GATES 70258 Part Description
Manufacturer
Product Description

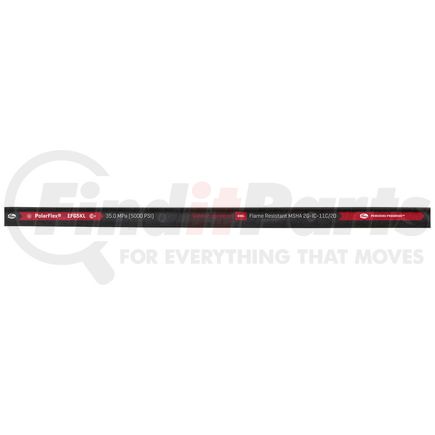

EFG5KL Low Temp Spiral Wire Hose
Features & Benefits
- For use with GlobalSpiral Couplings [G20 Series] and GlobalSpiral MAX Pressure Couplings [G23 and G24 Series]
- Resistant to cover cracking at low temperature and tight bend radius
- Tested to industry-leading 1,000,000 impulse cycles
- Temperature Range: -70 Deg. F to +212 Deg. F (-57 Deg. C to +100 Deg. C)
GATES 70258 Specifications
Product Attributes
| Product Type | EFG5KL Low Temp Spiral Wire Hose |
| Industrial Description | 16EFG5KLXCTN |
| Type | Hydraulic Hose |
| Hose Pressure Description | Extremely High Pressure |
| Maximum Working Pressure | 5000 PS |
| Burst Pressure | 20000 PS |
| Temperature Rating | -70 Deg. F to +212 Deg. F (-57 Deg. C to +100 Deg. C) |
| Length | 120 FT |
| Dash Size | 16 |
| Inside Diameter | 1 IN |
| Outside Diameter | 1.53 IN |
| Bend Radius | 6 IN |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Hose Material | Nitrile - Type C |
| Reinforcement Material | Four Alternating Layers of Spiraled, High-Tensile Wire |
| Cover Material | Synthetic Rubber - Polychloroprene - Type A - Color Coded Layline |
| Cover Type | Type A - Oil Resistant |
| Cover Color | Black |
| Coupling Recommendation | GlobalSpiral |
| SAE Standard | N/A |
| EN Standard | N/A |
| ISO Standard | N/A |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009210000 |
| Country of Origin (Primary) | US |
| UPC | 00770075600732 |
| VMRS Code | 059032029 |
| UNSPSC | 40142020 |
GATES 70258 Part Interchanges
| Brand | Part Number |
|---|---|
| NAPA | 70258 |
