GATES part description

Product Description

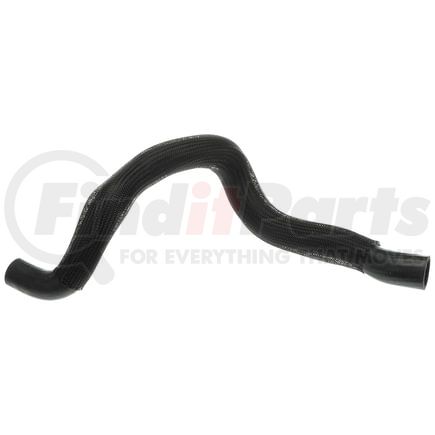

Premium Molded Coolant Hose

Application Summary

2018-14 Jeep, Cherokee, 4-Cyl. 2.4 L, Upper

Features & Benefits

  • Specifically-engineered materials resist collapse under vacuum
  • Specifically-engineered materials resist collapse under vacuum
  • Engineered to resist electrochemical degradation, the leading cause of hose failure
  • Pre-shaped to fit and to ensure perfectly sealed conditions
  • EPDM tube; synthetic fiber knit reinforcement; heat-, ozone- and chemical coolant-resistant EPDM cover
  • Meets requirements of SAE 20R4, class D2 and DIN 73411, class A (except for tolerances)
  • Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
  • Note: Gates recommends replacing hose clamps each time a new coolant hose is installed
  • Caution: Do not use for fuel or oil transfer applications

Product Attributes

Centerline Length 28.98 IN
9940 No
Branch Quantity 0
9845 0
End 1 Inside Diameter 1.12 in
End 2 Inside Diameter 1.34 in
Contains Spring No
Material EPDM, Plastic
9839 Yes
Centerline Length 736 MM
End 1 Inside Diameter 28 MM
End 2 Inside Diameter 34 MM

Additional Information

Harmonized Tariff Code (Schedule B) 4009310000
Country of Origin (Primary) US
UPC 00770075665175
VMRS Code 042004014
UNSPSC 40142000

Part Interchanges

Fits Vehicles

  • Jeep Cherokee (2014-2018)
