Name: Gates 24120 Premium Modular Coolant Hose
SKU: 24120
Price: 107.99 USD
Availability: InStock

GATES part description

Product Description

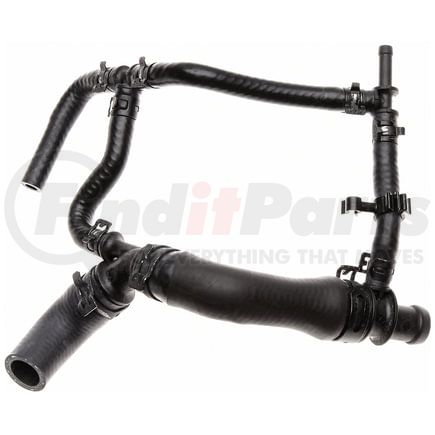

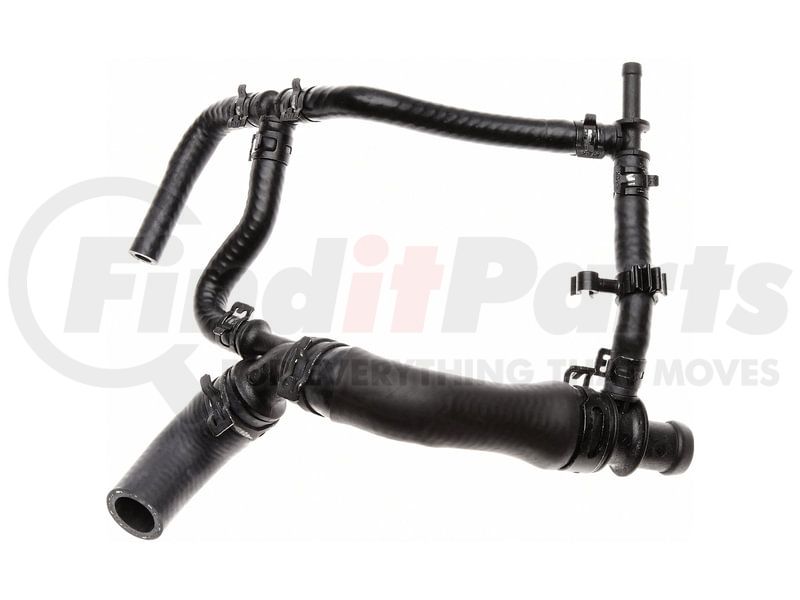

Premium Modular Coolant Hose

Application Summary

2002-1999 Volkswagen, Jetta, V-6 2.8 L, Throttle Body To Eng.

Features & Benefits

Specifically-engineered materials resist collapse under vacuum
Specifically-engineered materials resist collapse under vacuum
Engineered to resist electrochemical degradation - the leading cause of hose failure
Engineered to resist electrochemical degradation – the leading cause of hose failure
EPDM tube; synthetic fiber knit reinforcement, heat-, ozone- and chemical coolant-resistant EPDM cover
Manufactured with OEM-exact hose components (quick connects, branch connectors/tees, sensors, etc.)
Meets SAE 20R3 EC Class D1 under 25mm (1 in.) ID, SAE 20R4 EC Class D1 for 25mm (1 in.) ID and over
Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
Note: Gates recommends replacing clamps each time a new coolant hose is installed
Caution: Do not use for fuel or oil transfer applications

Product Attributes

Centerline Length	11.25 IN
9940	Yes
9942	4 Branches, 2 Outlets, 3 Flow Restrictors
Branch Quantity	4
9845	0
End 1 Inside Diameter	.2 in
End 2 Inside Diameter	.2 in
End 3 Inside Diameter	.31 in
End 4 Inside Diameter	.31 in
9945	.54 IN
9944	.76 IN
Contains Spring	No
Material	EPDM, Plastic
9839	Yes
Centerline Length	8 MM
End 1 Inside Diameter	5 MM
End 2 Inside Diameter	5 MM
End 4 Inside Diameter	8 MM
9945	14 MM
9944	19 MM

Additional Information

Harmonized Tariff Code (Schedule B)	4009310000
Country of Origin (Primary)	TR
UPC	00770075573586
VMRS Code	042004014
UNSPSC	40142000

Part Interchanges

Fits Vehicles

Volkswagen Jetta (1999-2002)
Volkswagen Golf (2000-2002)
