RAYBESTOS 781109R Part Description
Manufacturer
Product Description

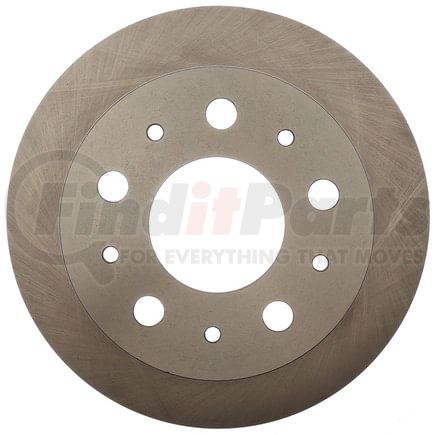

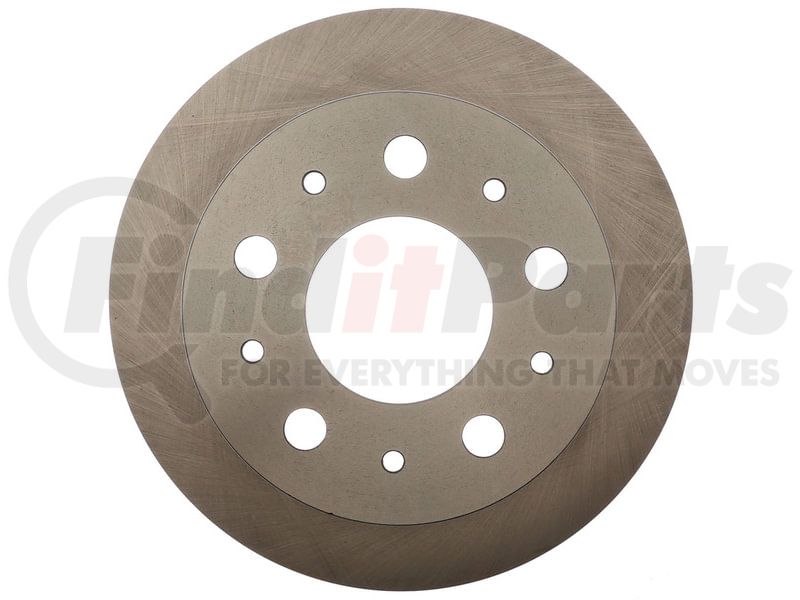

Raybestos R-Line Brake Rotor
Application Summary
2021-2014 Ram ProMaster 2500 Rear, 2021-2014 Ram ProMaster 1500 Rear, 2021-2014 Ram ProMaster 3500 Rear
RAYBESTOS 781109R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 3.11 IN |
| Center Hole Diameter | 79 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.559 IN |
| Discard Thickness | 14.2 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 7.579 IN |
| Inside Diameter | 192.5 MM |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 5.118 IN |
| Mounting Bolt Hole Circle Diameter | 130 MM |
| Mounting Bolt Hole Diameter | 0.693 IN |
| Mounting Bolt Hole Diameter | 17.6 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.63 IN |
| Nominal Thickness | 16 MM |
| Outside Diameter | 11.012 IN |
| Outside Diameter | 279.7 MM |
| Overall Height | 3.228 IN |
| Overall Height | 82 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| UPC | 00887213136975 |
RAYBESTOS 781109R Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | G15619SD, YH516901, YH516901C, YH516901P |
| AUTOZONE | 72117DG, 72117 |
| BRAKEBEST | 71497RGS, 781109, 781109FZN, 781109R |
| CENTRIC | 120.67077, 121.67077, 320.67077F |
| CHRYSLER | 68193434AA, 68193434AB, 68193434AB001, 68193434AC |
| CITROEN | 1607880580, 4249K8, 4249K9 |
| Centric Parts | 120.67077, 121.67077, 320.67077F |
| DURA CORP | BR901280 |
| DuraGo | BR901280 |
| Dynamic Friction Company | 600-40115 |
| FIAT | 51856411 |
| MAGMA PRODUCTS | PMR145208 |
| NAPA BRAKES | SDK6566 |
| NEWTEK AUTOMOTIVE | R1280 |
| Newtek Automotive USA | R1280 |
| Qualis | 43193 |
| UAP | 2901280 |
| Ultra Brake | 53168 |
| Wagner Brake | BD180700E |
RAYBESTOS 781109R Fits Vehicles
- Ram ProMaster 2500 (2014-2021)
- Ram ProMaster 3500 (2014-2021)
- Ram ProMaster 1500 (2014-2021)
