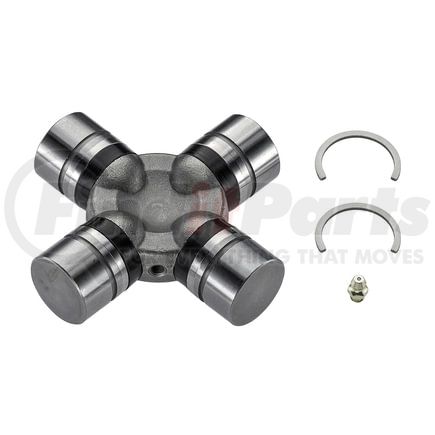

Moog 958 - MOOG 958 Greaseable Premium Universal Joint
$7699
5 day lead time
limited availability at this price!
. Learn more
MOOG part description
Product Description
Greaseable Premium Universal Joint
Features & Benefits
- BUILT TO LAST -- Rugged design specifically engineered for fleets, off-highway and commercial vehicles
- STRONG AND DURABLE -- Bearing cups are cold-formed, case-hardened and precision ground for strength and durability
- KEEPS DIRT OUT -- Abrasion-resistant nitrile seals provide ideal grease retention and protection from under-vehicle contaminants
- GREASEABLE DESIGN -- Drilled and tapped grease fitting holes for easy servicing and cross trunnions with large grease reservoirs with radial grease channels for grease distribution
- INHIBITS PREMATURE WEAR -- Cross trunnions ground to a 15-25 RMS finish for a smooth surface free of microscopic grooves that can cause premature wear
- RELIABLE PERFORMANCE -- Internal anti-drainback valve integrated into thrust washer controls lubrication flow and prevents dry startup
- RIGOROUS TESTING -- Comprehensive testing throughout design and development processes by MOOG engineers for quality you can count on
Product Attributes
| Bearing Cap Axis 1 Diameter | 1.313 IN |
| Bearing Cap Axis 1 Diameter | 33.3 MM |
| Bearing Cap Axis 2 Diameter | 1.313 IN |
| Bearing Cap Axis 2 Diameter | 33.3 MM |
| Bearing Cap Type | 4 Grooved Round Bearings |
| Bearing Type A | Round Grooved |
| Bearing Type B | Round Grooved |
| Length Axis 1 | 3.313 IN |
| Length Axis 1 | 84.1 MM |
| Length Axis 2 | 84.1 MM |
| Length Axis 2 | 3.313 IN |
| Length Measurement A | Outside of Groove to Outside of Groove |
| Length Measurement B | Inside of Groove to Inside of Groove plus thickness of 2 Lock Rings |
| LUBE FITTING LOCATION | Regular Lube Fitting in Cross |
| Greasable | YES |
| OE Series | Mechanics 5 |
| U-Joint Identification | 4 Grooved Round Bearings |
| Part Description | Universal Joint |
| Grade Type | Premium |
Additional Information
| Country of Origin (Primary) | MX |
| Canadian Harmonizing Tariff Code | 8708991510 |
| Harmonized Tariff Code (Schedule B) | 8708996810 |
| Harmonized Tariff Code (HTS) | 8708996810 |
| UPC | 00080066613390 |
Part Interchanges
For over 100 years, Moog® has been an industry leader in mid- to high-end aftermarket parts for steering, suspension, and driveline systems worldwide. Utilized by daily commuters to entire fleets, Moog parts have become synonymous with reliable performance that’s just as good or even better than their OE counterparts. Moog also incorporates innovative features in their products not found in competing products, such as patented forged steel bodies and metal “gusher” bearings that greatly reduce friction across moving components. The brand also leads the way in after-sales support, with comprehensive technical assistance and training materials available for customers around the world.
