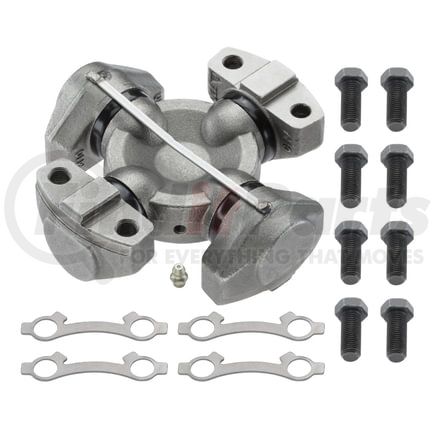

Name: Moog 570 Universal Joint
SKU: 570
Availability: OutOfStock

MOOG part description

Product Description

Greaseable Premium Universal Joint

Features & Benefits

BUILT TO LAST -- Rugged design specifically engineered for fleets, off-highway and commercial vehicles
STRONG AND DURABLE -- Bearing cups are cold-formed, case-hardened and precision ground for strength and durability
KEEPS DIRT OUT -- Abrasion-resistant nitrile seals provide ideal grease retention and protection from under-vehicle contaminants
GREASEABLE DESIGN -- Drilled and tapped grease fitting holes for easy servicing and cross trunnions with large grease reservoirs with radial grease channels for grease distribution
INHIBITS PREMATURE WEAR -- Cross trunnions ground to a 15-25 RMS finish for a smooth surface free of microscopic grooves that can cause premature wear
RELIABLE PERFORMANCE -- Internal anti-drainback valve integrated into thrust washer controls lubrication flow and prevents dry startup
RIGOROUS TESTING -- Comprehensive testing throughout design and development processes by MOOG engineers for quality you can count on

Product Attributes

Bearing Cap Type	4 Low Wing Threaded
Bearing Type Notes	Uses Delta Wing Bearings in place of Low Wing Bearings
Dimension Across Bearing Wing A - Inch	1.94
Dimension Across Bearing Wing A - mm	49.3
Dimension Across U-Joint A - Inch	4.62
Dimension Across U-Joint A - mm	117.3
LUBE FITTING LOCATION	Regular libe fitting in cross
Greasable	YES
OE Series	Mechanics 7C / Rockwell 72N
U-Joint Identification	4 Wing Bearings
Part Description	Universal Joint

Additional Information

Country of Origin (Primary)	MX
Canadian Harmonizing Tariff Code	8708991510
Harmonized Tariff Code (Schedule B)	8708996810
Harmonized Tariff Code (HTS)	8708996810
UPC	00080066610016

Part Interchanges

For over 100 years, Moog® has been an industry leader in mid- to high-end aftermarket parts for steering, suspension, and driveline systems worldwide. Utilized by daily commuters to entire fleets, Moog parts have become synonymous with reliable performance that’s just as good or even better than their OE counterparts. Moog also incorporates innovative features in their products not found in competing products, such as patented forged steel bodies and metal “gusher” bearings that greatly reduce friction across moving components. The brand also leads the way in after-sales support, with comprehensive technical assistance and training materials available for customers around the world.
