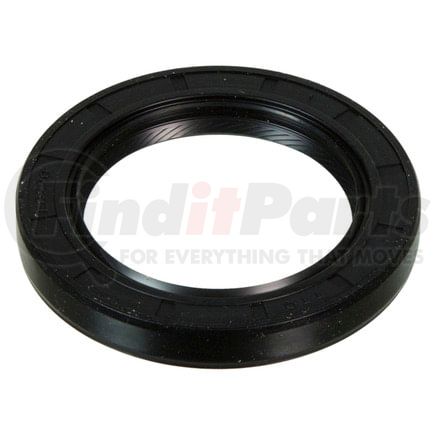

National Seals 710678 - National 710678 Multi-Purpose Seal
- Part Number
- 710678
- Manufacturer
- NATIONAL SEALS
- Description
-
National 710678 Multi-Purpose Seal
details
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
NATIONAL SEALS part description
Product Description
Multi-Purpose Seal
Application Summary
2005-2007 Chrysler 300 (Front) (Drive: AWD); 2007 Dodge Charger (Front) (Drive: AWD / Qualifier: with Magna Steyr 140 Transfer Case, 1 Speed); 2005-2007 Dodge Magnum (Front) (Drive: AWD); 2005-2006 Buick Terraza (Drive: AWD / Qualifier: with Magna Steyr 1008 Transfer Case, 1 Speed); 2002-2006 Buick Rendezvous (Drive: AWD); 2004-2012 Chevrolet Colorado (Transmission Base Gear: 5 & Transmission Control Type: Manual & Drive: 4WD / Qualifier: with Aisin AR5 Transmission); 2005-2006 Chevrolet Uplander (Drive: AWD / Qualifier: with Magna Steyr 1008 Transfer Case, 1 Speed); 2002-2004 Chevrolet Venture (Drive: AWD); 2004-2012 GMC Canyon (Transmission Base Gear: 5 & Transmission Control Type: Manual & Drive: 4WD / Qualifier: with Aisin AR5 Transmission); 2002-2004 Oldsmobile Silhouette (Drive: AWD); 2001-2005 Pontiac Aztek (Drive: AWD / Qualifier: with Magna Steyr 1008 Transfer Case, 1 Speed); 2000-2006 Pontiac Montana (Drive: AWD / Qualifier: with Magna Steyr 1008 Transfer Case, 1 Speed); 2005-2006 Saturn Relay (Drive: AWD); 2006-2009 Mercedes-Benz E350 (Front) (Drive: AWD); 2006-2007 Mercedes-Benz C350 (Front) (Drive: AWD); 2007 Mercedes-Benz E280 (Front) (Drive: AWD / Qualifier: with Magna Steyr SEC Transfer Case, 1 Speed); 2003-2005 Mercedes-Benz C240 (Front) (Drive: AWD / Qualifier: with Magna Steyr SEC Transfer Case, 1 Speed); 2006-2007 Mercedes-Benz C280 (Front) (Drive: AWD); 2003-2005 Mercedes-Benz C320 (Front) (Drive: AWD / Qualifier: with Magna Steyr SEC Transfer Case, 1 Speed); 2004-2005 Mercedes-Benz E320 (Front) (Drive: AWD / Qualifier: with Magna Steyr SEC Transfer Case, 1 Speed); 2004-2006 Mercedes-Benz E500 (Front) (Drive: AWD / Qualifier: with Magna Steyr SEC Transfer Case, 1 Speed); 2003-2006 Mercedes-Benz S430 (Front) (Drive: AWD / Qualifier: with Magna Steyr SEC Transfer Case, 1 Speed); 2003-2006 Mercedes-Benz S500 (Front) (Drive: AWD / Qualifier: with Magna Steyr SEC Transfer Case, 1 Speed)
Features & Benefits
- Design type: spring loaded; multi-lip
- Temperature range: -30°F to 325°F / -34°C to 163°C
- Temperature range: -30degF to 325degF / -34degC to 163degC
- Superior thermal and chemical resistance
- Good abrasion and dry running capability
- Delivers quality and reliable performance for every type of repair
Product Attributes
| Inside Diameter | 1.575 IN |
| Inside Diameter | 40.000 MM |
| Outside Diameter | 2.291 IN |
| Outside Diameter | 58.200 MM |
| Width | 0.315 IN |
| Width | 8.000 MM |
| Material | Ethylene-Acrylic |
| Helix Type | Counter-Clockwise-Spiral Lip Design |
| Part Description | Oil Seal |
| Sealing Material | Ethylene-Acrylic |
| Series | 710600 |
| Thickness | 0.315 IN |
| Thickness | 8.000 MM |
| Type | 32 |
| Unit of Dimension | Metric |
| Housing Bore | 2.830 IN |
| Housing Bore | 58.000 MM |
| Shaft Diameter | 1.575 IN |
| Shaft Diameter | 40.000 MM |
| Grade Type | Premium |
Additional Information
| Country of Origin (Primary) | TW |
| Harmonized Tariff Code (Schedule B) | 4016931020 |
| Harmonized Tariff Code (HTS) | 4016931020 |
| Canadian Harmonizing Tariff Code | 4016930000 |
| UPC | 00019826202260 |
Part Interchanges
- Porsche 97033280300
- Suzuki 24732-54J00
- Suzuki 24732-54J00-000
- Suzuki 24732-68D50-000
- Suzuki 24732-68D50
- Chrysler 05143659AA
- Chrysler 5143659AA
- Mercedes-Benz 2209970246
- Payen NA5379
- General Motors 12571295
- General Motors 89048307
- Mopar 5143659AA
- ACDelco 89048307
- Timken SL260197
- Corteco 19035354B
- Corteco 19035354
- Isuzu 8-89048-307-0
Fits Vehicles
- Saturn Relay (2005-2006)
- Mercedes-Benz E280 (2007)
- Dodge Charger (2007)
- Mercedes-Benz C350 (2006-2007)
- Mercedes-Benz C280 (2006-2007)
- Mercedes-Benz E350 (2006-2009)
- Chevrolet Uplander (2005-2006)
- Buick Terraza (2005-2006)
- Chrysler 300 (2005-2007)
- Dodge Magnum (2005-2007)
- Chevrolet Colorado (2004-2012)
- Pontiac Montana (2000-2006)
- Pontiac Aztek (2001-2005)
- Oldsmobile Silhouette (2002-2004)
- Mercedes-Benz E500 (2004-2006)
- Mercedes-Benz E320 (2004-2005)
- GMC Canyon (2004-2012)
- Chevrolet Venture (2002-2004)
- Buick Rendezvous (2002-2006)
- Mercedes-Benz S500 (2003-2006)
- Mercedes-Benz S430 (2003-2006)
- Mercedes-Benz C320 (2003-2005)
- Mercedes-Benz C240 (2003-2005)
