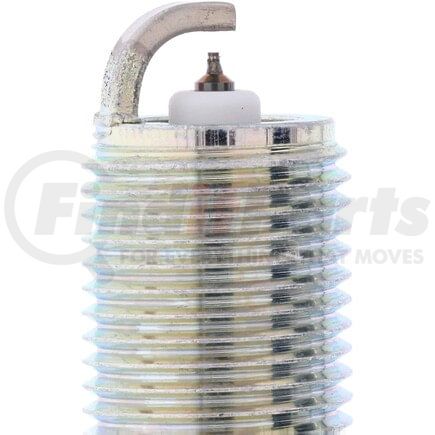

NGK Spark Plugs 94489 - NGK Laser Iridium Spark Plug
- Part Number
- 94489
- Manufacturer
- NGK SPARK PLUGS
- Description
-
NGK Laser Iridium Spark Plug
details
$1049
In stock
limited availability at this price!
. Learn more
NGK SPARK PLUGS part description
Product Description
NGK Laser Iridium Spark Plug
Features & Benefits
- ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction fine wire iridium alloy center electrode provides consistent performance
- IRIDIUM ALLOY CENTER ELECTRODE: Iridium's density (6x that of platinum) and extremely high melting point is perfect for modern high efficiency engines
- PLATINUM TIP GROUND ELECTRODE: Unless OE specified, platinum protection at the ground electrode provides excellent ignitability and service life
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
- RECOMMENDED USAGE: Best for vehicles with OE fine wire iridium alloy plugs
Product Attributes
| Part Number | ILTR6M9G |
| Stock Number | 94489 |
| Resistance | 5000.0 82 |
| Ground Electrode Tip Design | Standard |
| Ground Configuration | J-Gap |
| Ground Electrode Core Material | Copper |
| Electrical Terminal Type | Non-Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Iridium |
| Pre-Gap Size | .036 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 5/8 IN |
| Insulator Height | 53.00 MM |
| Manufacturer Heat Range | 6 |
| Seat Type | Tapered |
| Reach | 25.00 MM |
| Thread Diameter | 14.00 MM |
| Short Style Spark Plug | No |
| Service Number | ILTR6M9G |
| Washer Included | No |
| Grade Type | Performance |
| Hex Size | 5/8" (16mm) |
| Insulator Height | 2.07 IN |
| Reach | 0.984 IN |
| Thread Diameter | 0.551 IN |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| 6648 | 0.0 IN |
| Ground Electrode Tip Material | Platinum |
| 9459 | No |
| 9506 | 0.14 IN |
| 9608 | Fine Wire |
| 9805 | Mid Projection |
Additional Information
| Warranty Time UOM | MO |
| Warranty Time | 2 |
| Country of Origin (Primary) | JP |
| Harmonized Tariff Code (HTS) | 8511100000 |
| UPC | 00087295944899 |
| VMRS Code | 033003005 |
| UNSPSC | 26101732 |
Part Interchanges
Fits Vehicles
- Buick Regal Sportback (2018-2020)
- Buick Regal TourX (2018-2020)
- GMC Terrain (2018-2020)
- Chevrolet Traverse (2018-2019)
- Chevrolet Equinox (2018-2020)
- Buick Envision (2016-2020)
- Cadillac CT6 (2016-2018)
- Chevrolet Camaro (2016-2023)
- Chevrolet Malibu (2014-2022)
- Cadillac CTS (2014-2019)
- Cadillac ATS (2014-2019)
- Buick Regal (2014-2017)
Headquartered in Wixom, Michigan, NGK® is a global leader in the design and manufacture of spark plugs for virtually every automotive and commercial vehicle application. It has grown immensely since its inception in 1936 with the expansion of its ignition product line and the introduction of its technical sensor and vehicle electronics line. NGK partners with OEMs and uses only the latest cutting tools to ensure each NGK product meets OE specifications for exact fit, form, and function. With world-class quality and engineering, NGK’s expertise goes beyond manufacturing the most reliable spark plugs for the automotive industry but also providing the best customer service possible.
