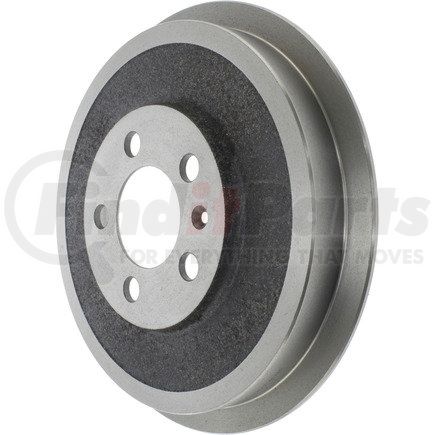

Name: Centric 123.99028 C-Tek Standard Brake Drum
SKU: 12399028
Price: 48.49 USD
Availability: InStock

CENTRIC part description

Product Description

C-Tek Standard Brake Drum

Features & Benefits

Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket

Product Attributes

Misc Holes [cntrc]	1
Weight [cntrc] Kgs	6.295
Weight [cntrc] Lbs	13.850
Mounting Type [cntrc]	Floating
Bolt Circle Diameter [cntrc] Mm	100.000
Bolt Circle Diameter [cntrc] In	3.937
Hub Hole / Register [cntrc] Mm	65.000
Hub Hole / Register [cntrc] In	2.559
Height [cntrc] Mm	57.500
Height [cntrc] In	2.264
Friction Surface Width [cntrc] Mm	39.800
Friction Surface Width [cntrc] In	1.567
Product Grade [cntrc]	Standard
Maximum Brake Diameter (Discard)	231.500 MM
Maximum Brake Diameter (Discard)	9.114 IN
Bolt Hole Quantity	5
Outside Diameter	290.000 MM
Outside Diameter	11.417 IN
Outer Cooling Fins	No
Mounting Hole Diameter	15.800 MM
Mounting Hole Diameter	0.622 IN
Nominal Drum Diameter	9.055 IN
Nominal Drum Diameter	230.000 MM

Additional Information

Harmonized Tariff Code (HTS)	8708305030
NAFTA Preference Criterion Code	B
Country of Origin (Primary)	CN
Harmonized Tariff Code (Schedule B)	8708300050
UPC	889590001860

Part Interchanges

Fits Vehicles

Volkswagen Clasico (2011-2015)
