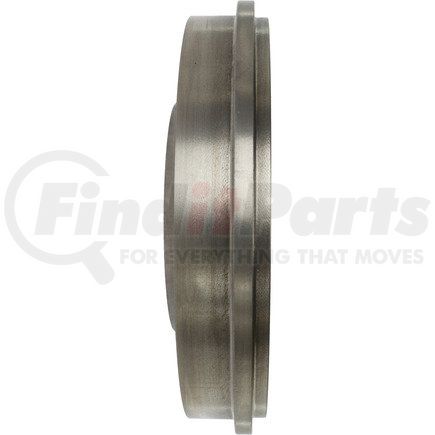

Centric 123.99037 - C-Tek Standard Brake Drum
$3899
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
Product Attributes
| Friction Surface Width [cntrc] In | 1.555 |
| Hub Hole / Register [cntrc] In | 2.563 |
| Friction Surface Width [cntrc] Mm | 39.500 |
| Weight [cntrc] Kgs | 4.909 |
| Height [cntrc] In | 2.264 |
| Weight [cntrc] Lbs | 10.800 |
| Product Grade [cntrc] | Standard |
| Bolt Circle Diameter [cntrc] In | 3.937 |
| Height [cntrc] Mm | 57.500 |
| Mounting Type [cntrc] | Floating |
| Misc Holes [cntrc] | 1 |
| Bolt Circle Diameter [cntrc] Mm | 100.000 |
| Hub Hole / Register [cntrc] Mm | 65.100 |
| Maximum Brake Diameter (Discard) | 231.500 MM |
| Maximum Brake Diameter (Discard) | 9.114 IN |
| Bolt Hole Quantity | 4 |
| Outside Diameter | 270.000 MM |
| Outside Diameter | 10.630 IN |
| Mounting Hole Diameter | 13.800 MM |
| Mounting Hole Diameter | 0.543 IN |
| Nominal Drum Diameter | 230.000 MM |
| Nominal Drum Diameter | 9.055 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 889590060447 |
Part Interchanges
Fits Vehicles
- Volkswagen Saveiro (2010-2014)
