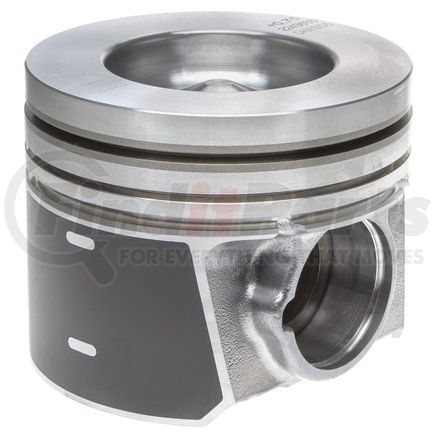

Mahle 224-3666-0.75MM - Engine Piston Set
$10099
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
MAHLE part description
Product Description
Engine Piston Set
Product Attributes
| Compression Height (mm) | 52.29 |
| Piston Length (mm) | 79 |
| Measure Skirt Clearance At | 43MM from Bottom |
| Bore Diameter (mm) | 98.962 |
| Piston Recess Depth (in) | 0.626 |
| Piston oversize | 0.75 mm |
| Piston Recess Diameter (mm) | 57.5 |
| Piston Item Grade | OE Replacement |
| Piston Pin Hole Location | Center |
| Coated Skirt | Yes |
| With Piston Rings | No |
| Piston Recess Diameter (in) | 2.26 |
| Piston Length (in) | 3.11 |
| Piston Skirt Clearance (mm) | 0.232 |
| Piston Recess Depth (mm) | 15.9 |
| Piston Skirt Clearance (in) | 0.0091 |
| Piston Pin Retention Type | Fixed |
| Oversized | Yes |
| Top Compression Ring Thickness | 2.50 MM |
| Second Compression Ring Thickness | 2.00 MM |
| Oil Ring Thickness | 3.00 MM |
| Piston Pin Outside Diameter | 38.496 MM |
| Piston Head Type | Bowl |
| Piston Material | Aluminium |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8409914000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| UPC | 00027067927385 |
Part Interchanges
Fits Vehicles
- Ford F-550 Super Duty (2008-2010)
- Ford F-450 Super Duty (2008-2010)
- Ford F-350 Super Duty (2008-2010)
- Ford F-250 Super Duty (2008-2010)
