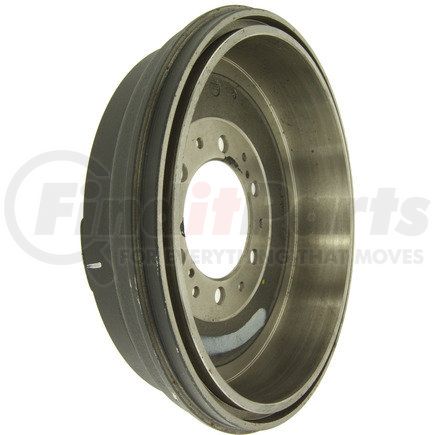

(888) 312-8812 Login SignupCENTRIC 123.99036 C-Tek Standard Brake Drum
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 123.99036 Part Description
Manufacturer
Product Description
C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
CENTRIC 123.99036 Specifications
Product Attributes
| Hub Hole / Register [cntrc] Mm | 108.000 |
| Weight [cntrc] Kgs | 10.955 |
| Bolt Circle Diameter [cntrc] Mm | 139.700 |
| Weight [cntrc] Lbs | 24.100 |
| Product Grade [cntrc] | Standard |
| Misc Holes [cntrc] | 8 |
| Height [cntrc] In | 2.996 |
| Height [cntrc] Mm | 76.100 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] In | 5.500 |
| Friction Surface Width [cntrc] In | 2.657 |
| Friction Surface Width [cntrc] Mm | 67.500 |
| Hub Hole / Register [cntrc] In | 4.252 |
| Maximum Brake Diameter (Discard) | 297.000 MM |
| Maximum Brake Diameter (Discard) | 11.690 IN |
| Bolt Hole Quantity | 6 |
| Outside Diameter | 344.500 MM |
| Outside Diameter | 13.563 IN |
| Mounting Hole Diameter | 14.400 MM |
| Mounting Hole Diameter | 0.567 IN |
| Nominal Drum Diameter | 295.000 MM |
| Nominal Drum Diameter | 11.614 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 805890824251 |
CENTRIC 123.99036 Cross References
| Brand | Part Number |
|---|---|
| N/A | 27036, 123.99036, 36592035, 424310K140, 424310K130, 424310K120 |
CENTRIC 123.99036 Fits Vehicles
- Toyota Hilux (2010-2016)
