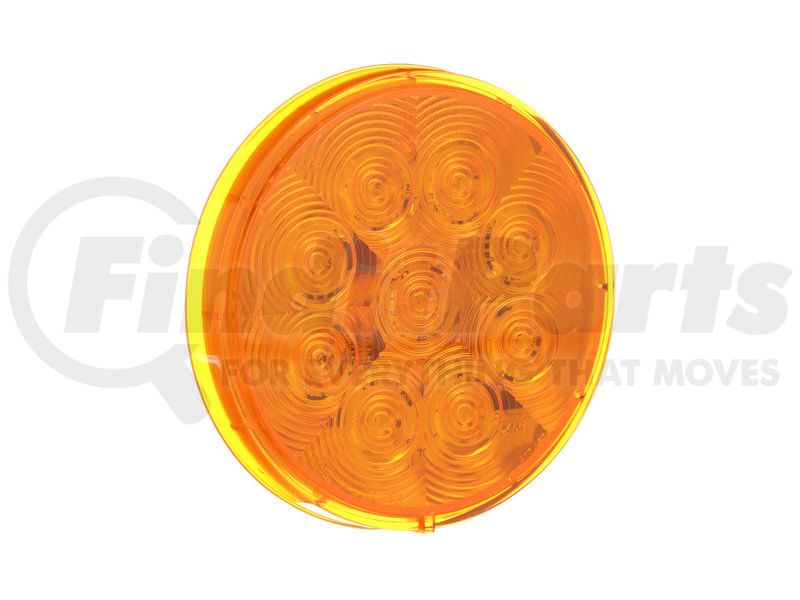

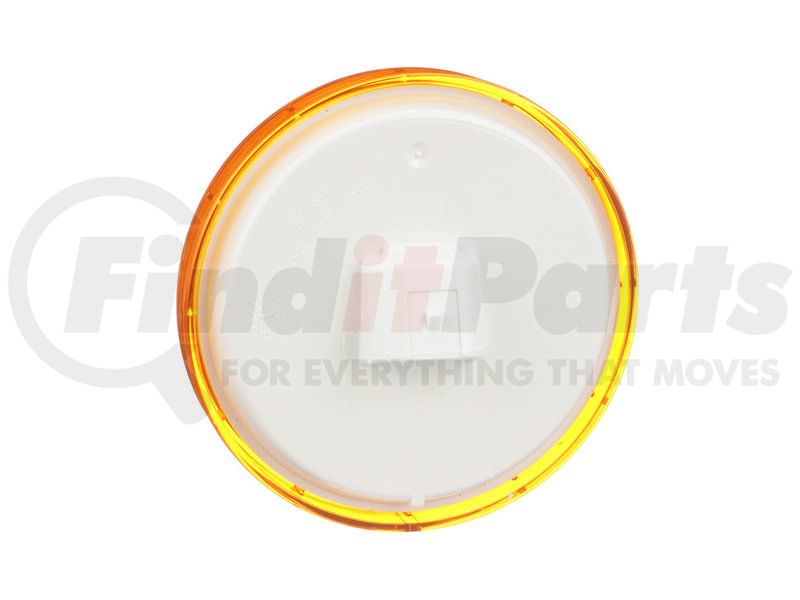

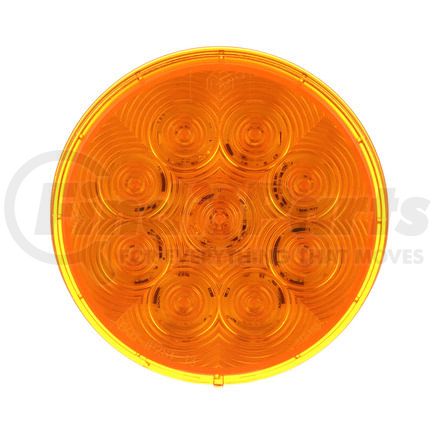

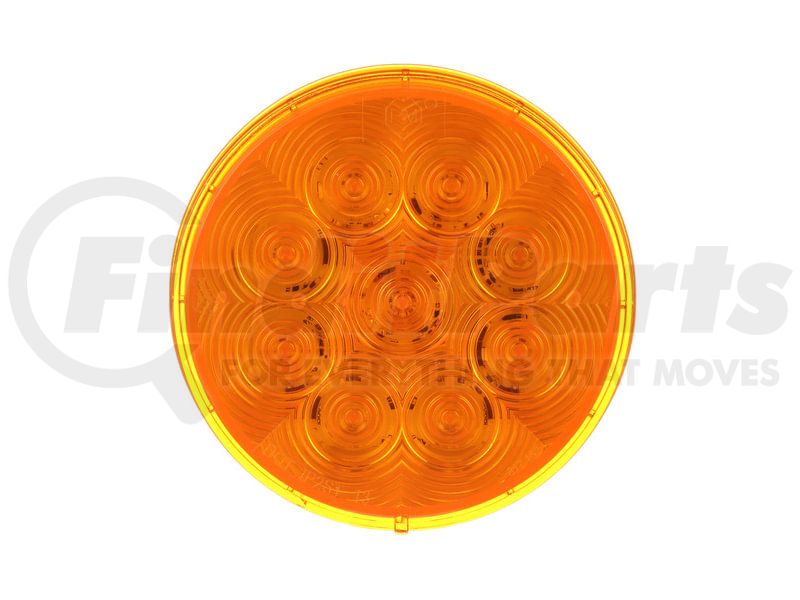

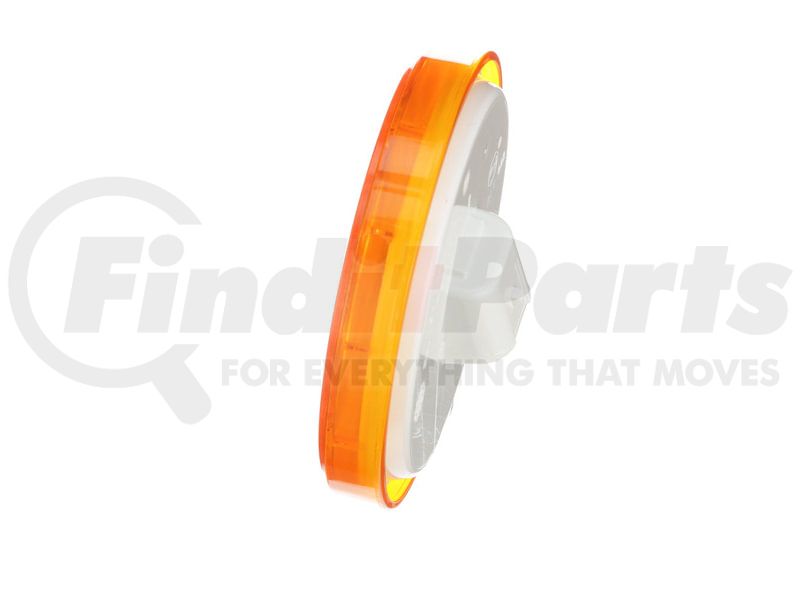

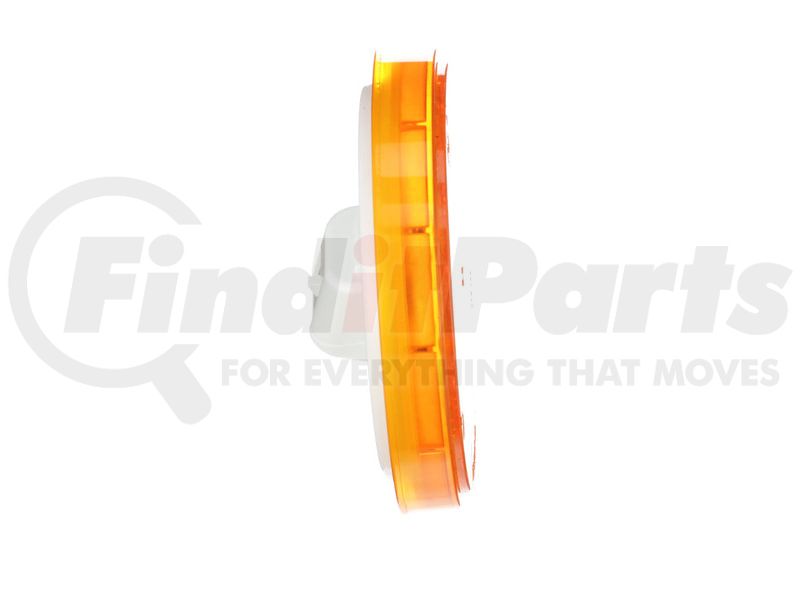

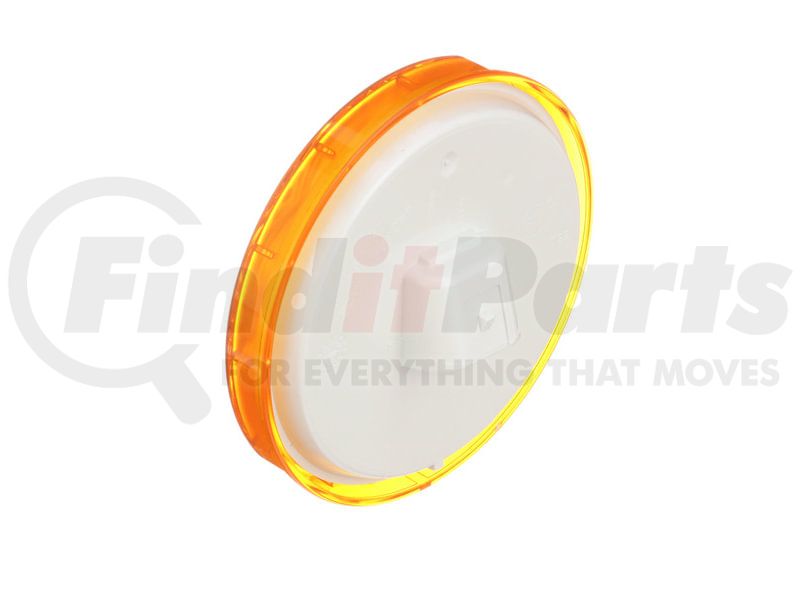

Peterson Lighting 817SA-9 - 817S-9/818S-9 LumenX® LED Round Class 1 Strobing Lights - Amber Grommet Mount
- Part Number
- 817SA-9
- Manufacturer
- PETERSON LIGHTING
- Description
-
817S-9/818S-9 LumenX® LED Round Class 1 Strobing Lights - Amber Grommet Mount
details
$27,71444
Package Price for 956 Units
@ $28.99 per unit
+$23.71 Core Deposit
Total price w/ core: $52.70
In stock
limited availability at this price!
. Learn more
PETERSON LIGHTING part description
817S-9/818S-9 LumenX® LED Round Class 1 Strobing Lights
Peterson Lighting LumenX® LED Round Class 1 Strobing Light
The Peterson Lighting LumenX® LED round Class 1 strobing light creates a powerful piercing flash that’s visible at a considerable distance. It is designed to deliver brighter illumination, grabbing attention more effectively.
Features & Benefits
- A grommet-mount LED strobing light that generates 73 quad flashes per minute
- Offers maximum reliability with its simple 9 white diode design behind the colored lens
- With multi-volt operating range and made compatible with 12V or 24V vehicle systems
- Offers excellent corrosion protection with its AMP-compatible weatherproof receptacle
- Delivers piercing intensity that exceed SAE J595 Class 1 specifications
- Made to exceed specifications when mounted in any 360-degree orientation
- Designed to last longer than the competing units
Product Description
LED STROBE LIGHT, ROUND, AMP, GROMMET-MOUNT, CLASS 1, 4", MV
Features & Benefits
- 9 diodes.
- Defender harness & lighting system approved.
- Lumenx® lens and circuitry.
- Made in USA.
- LED strobe.
- Multivolt version available.
- Voltage Regulated.
- Meets SAE J595 Class 1
- Strobing light functions as auxiliary strobe or warning light.
- Ideal for emergency, construction and refuse vehicles.
- New white diodes behind white or colored lenses.
- Advanced optics fully illuminate lens.
- AMP-compatible connector integrated into housing.
- Regulated design provides voltage protection and consistent light output over a wide voltage range.
- 818-9 has flange integrated into the housing.
- 817-9 has skirted weld joint for added protection against moisture.
- 9-32 volt operating range is compatible with 12V and 24V vehicles.
- See Peterson Master Catalog pages 184–185 & 187 for mounting options.
426-18: grommet (poly pack - std qty 12)
Product Attributes
| Bulb Technology | LED |
| Bulb/diode Count | 9 |
| California Proposition 65 Required | Y |
| Container Type | poly bag |
| Diameter | 4.25 IN |
| Family | LumenX |
| Flash Type | Quad |
| Height | 4.25 in |
| Integral Reflex | N |
| Length | 4.25 in |
| Lens Color | amber |
| Light Color | amber |
| Maximum Voltage | 32 Volts |
| Minimum Voltage | 9 Volts |
| Mounting Type | grommet |
| Multi-volt | Y |
| Programmable | N |
| Sae Class | J595 Class 1 |
| Shape | round |
| Syncronizable | N |
| Termination | AMP |
| Voltage | 12 Volts |
| Width | 1.42 in |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8512204000 |
| UPC | 00044464994437 |
| VMRS Code | 034004402 |
PETERSON LIGHTING 817SA-9 Cross Reference
We have 1 alternatives for the 817SA-9 by PETERSON LIGHTING:
Peterson Lighting® is a family-owned company that produces and distributes vehicle safety lighting systems mirrors, and other related safety products and accessories. It has been in the business for 75 years, and currently, it offers over 2,200 products designed for various applications, including tilt-bed and cargo vehicles and light- and medium-duty trailers. Peterson Lighting believes that full commitment to quality is its responsibility as a market leader. All its components are designed and manufactured only in its ISO 9001/QS-9000-certified facility in Grandview, MO. This facility is handled by knowledgeable and highly skilled specialists, who are as dedicated and passionate as the company when it comes to quality.
