REDNECK TRAILER part description

Agricultural Hub Kit W/ 6 on 6" Bolt Pattern For 6,000lb Axles

There is no need to worry about the races as they are already pressed into the hub for you. The bearings, grease seal, grease cap, and wheel bolts for the hub are included. Each hub has a capacity of 3,000lbs. Spindle nut and spindle washer sold separately.

  • Agricultural hubs are designed for low speed applications not to exceed 20 MPH

Items in Kit:

  • 1 LM67048 Outer Bearing (1.25" ID)
  • 1 LM29749 Inner Bearing (1.5" ID)
  • 1 LM67010 Outer Race (Already Pressed In) 2.328"
  • 1 LM29710 Inner Race (Already Pressed In) 2.563"
  • 1 SL175 Grease Seal (1.75" x 2.722")
  • 1 45896 Grease Cap (2.44")
  • 6 LB509 Wheel Bolts
  • 1 6 on 6" Hub
  • 3,000lb Capacity Per Hub

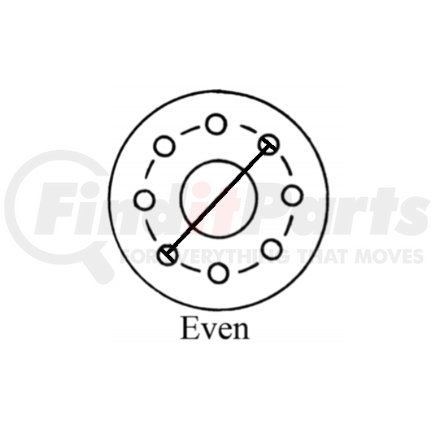

Please refer to the diagram Image for these measurements



To determine the bolt circle on hubs or wheels with an even number of studs, measure center-to-center of studs directly across from each other on the diameter(bolt patterns are always measured in inches). Example: 8 on 6 1/2 would mean 8 studs with 6 1/2” center-to-center diameter.

REDNECK TRAILER AH30660FCOMP Cross Reference

We have 1 alternatives for the AH30660FCOMP by REDNECK TRAILER:

Redneck Trailer® has been setting the standard in trailer parts since 1979. During its first two years, it manufactured gooseneck trailers that were painted red, which is where its name was derived. It then shifted to distributing trailer parts instead of producing trailers in response to the customers' need for a reliable source of trailer parts in 1981. Since the initial opening of the Redneck Trailer Supplies warehouse in Springfield, MO, the company has grown to include 20 branch locations in the United States. It has cemented itself as a leading supplier of trailer parts and accessories across the US and beyond.
