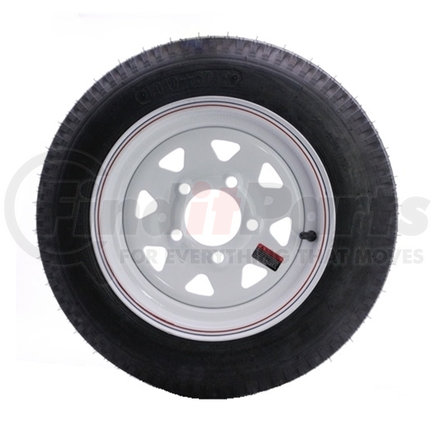

Name: Redneck Trailer 4812TWSPK5-B Tire & Wheel Assembly 545 4.80-12 LR B
SKU: 4812twspk5b
Price: 150.49 USD
Availability: InStock

REDNECK TRAILER part description

This trailer tire is designed for excellent handling at high speeds. Steel wheel has 8-spoke design. Resists rust with e-coat and white powder coat finishes. Tire-and-wheel assembly meets Department of Transportation specifications.

Rim dimensions: 12" diameter x 4" wide
Bolt pattern: 5 on 4.5"
Wheel bolt size: 1/2"-20
Pilot diameter: 2.84"
Tire size: 4.80-12
Section width: 4.9"
Outer diameter (when inflated): 20.7"
Load range: B(4 ply)
Maximum load: 785 lbs at 60 psi
Limited 2-year warranty
Trailer tire and wheel assemblies are not meant to be balanced.

Please refer to the diagram Image for these measurements

To determine the bolt circle on hubs or wheels with an odd number of bolt holes, measure from outside to center of the studs across the pattern(bolt patterns are always measured in inches). Example: If you were to number the studs 1, 2, 3, then you would measure from the outside of stud 1 to the center of stud 3.

REDNECK TRAILER 4812TWSPK5-B Cross Reference

We have 1 alternatives for the 4812TWSPK5-B by REDNECK TRAILER:

59415
