GATES G25181-2020 Part Description
Manufacturer
Product Description

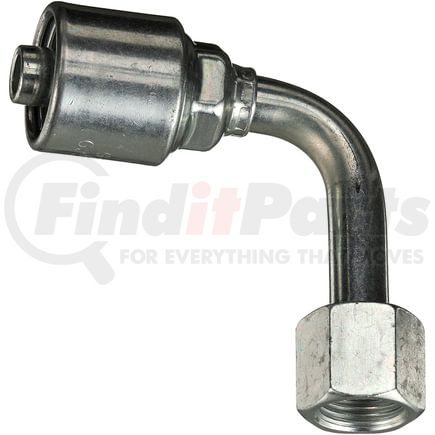

Female JIC 37 Flare Swivel - 90 Bent Tube (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25181-2020 Specifications
Product Attributes
| Coupling Description | MegaCrimp Female JIC 37 Flare Swivel - 90 Bent Tube |
| Industrial Description | 20G-20FJX90L |
| Thread Size | 1 5/8-12 |
| Inside Diameter | 1.25 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |

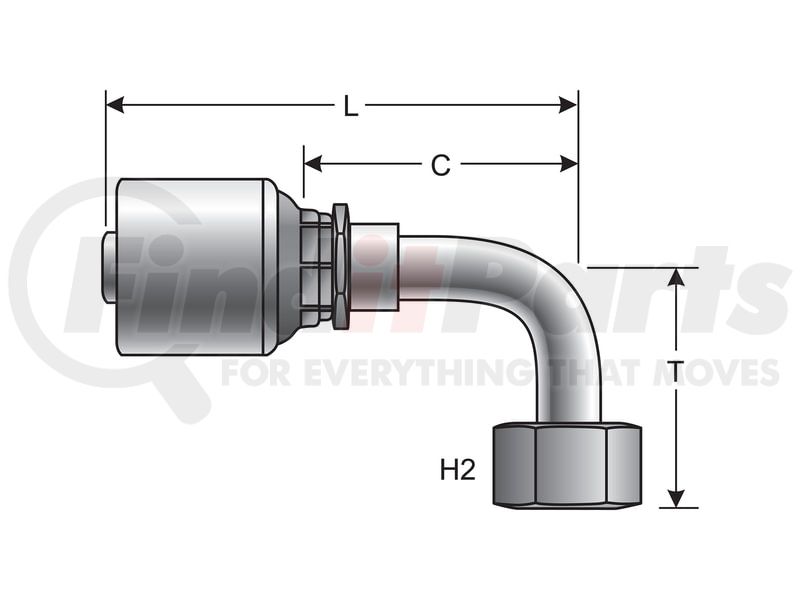

| Nut Hex Size | 50 MM |
| Drop Length | 5.08 IN |
| Cut-Off Length | 3.9 IN |
| Length | 6.22 IN |
| Seal Type | Mated Angle |
| Nose Seat Type | Standard |
| Mating Angle | 37 |
| Gender | Female |
| Bent Tube Angle | 90 |
| Swivel | Yes |
| Inside Diameter | 31.8 MM |
| Drop Length | 129 MM |
| Cut-Off Length | 99 MM |
| Length | 158 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| UPC | 00770075169697 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25181-2020 Part Interchanges
| Brand | Part Number |
|---|---|
| Aeroquip | 1AR20FJC20, 1AV20FJC20 |
| Parker | 14143-20-20 |
| Weatherhead | 20Z657 |
| Caterpillar | 124-2014 |
| NAPA | G25181-2020 |
