(888) 312-8812 Login SignupGATES G25180-1012 CL11-FEMALE JIC
Tap to view 3 more
$5499
Limited availability at this price!
In Stock
Get it by Monday, Jan 12
GATES G25180-1012 Part Description
Manufacturer
Product Description

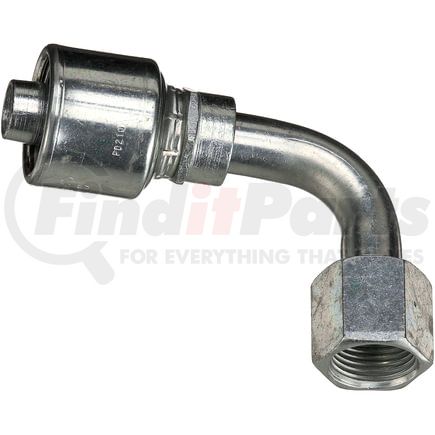

Female JIC 37 Flare Swivel - 90 Bent Tube (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25180-1012 Specifications
Product Attributes
| Coupling Description | MegaCrimp Female JIC 37 Flare Swivel - 90 Bent Tube |
| Industrial Description | 10G-12FJX90M |
| Thread Size | 1 1/16-12 |
| Inside Diameter | .625 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Nut Hex Size | 32 MM |
| Drop Length | 2.28 IN |
| Cut-Off Length | 1.8 IN |
| Length | 4.03 IN |
| Seal Type | Mated Angle |
| Nose Seat Type | Standard |
| Mating Angle | 37 |
| Gender | Female |
| Bent Tube Angle | 90 |
| Swivel | Yes |
| Inside Diameter | 15.9 MM |
| Drop Length | 58 MM |
| Cut-Off Length | 45.8 MM |
| Length | 102.3 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | US |
| UPC | 00072053446449 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25180-1012 Part Interchanges
| Brand | Part Number |
|---|---|
| Goodyear | 14425-1012, B2-JCFX90-1012, UC-JCFX90-1012 |
| NAPA | G25180-1012 |
