Firestone W013587850 - Air Spring Triple Convoluted 333
$54049
In stock
limited availability at this price!
FIRESTONE part description

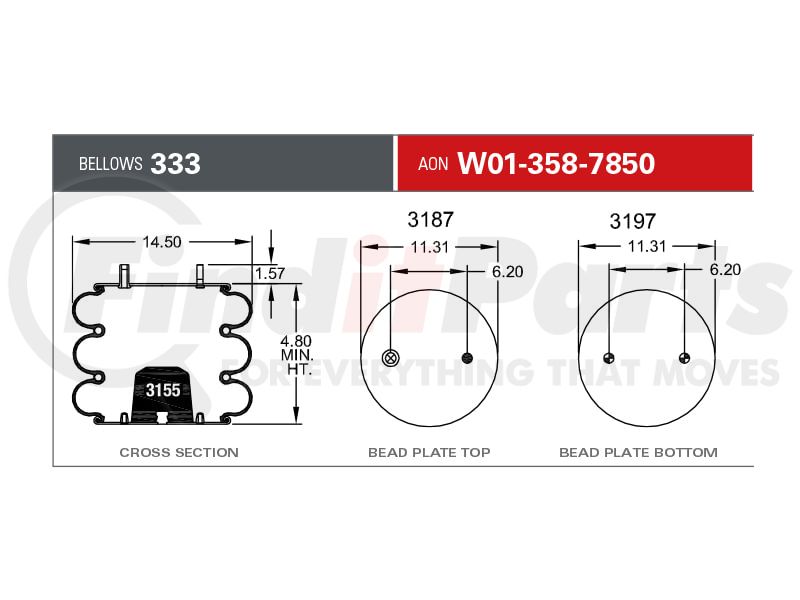

TECHNICAL DATA -
Order Number: | W01-358-7850 |
Bellows #: | 333 |
Assembly Weight: | 28.5 lbs |
Design Height: | 11-15 inches |
Minimum Jounce Height: | 4.8 inches |
Maximum Rebound Height: | N/A inches |
Loading Capacity at 20 psig: | 1,976 lbsf |
Loading Capacity at 60 psig: | 5,928 lbsf |
Loading Capacity at 90 psig: | 8,892 lbsf |
Natural Frequency: | Hz |
Maximum Diameter: | 15.2 inches |
Material Type: | N/A |
Operating Temperature: | 57Cº to-54Cº |
Remarks: | |
TR: A-8695 |
FIRESTONE W013587850 Cross Reference
We have 23 alternatives for the W013587850 by FIRESTONE:
- FIRESTONE 333C RB
- ARVIN MERITOR 200177
- HISTEER 10301
- SUSPENSIONS 200177
- MERITOR 200177
- GOODYEAR 3B14452
- TRIANGLE 4441
- CONTITECH FT53035441
- 556338335
- 566338335
- 578933350
- 6335
- FIW013587850
- CONTITECH AS7850
- TRIANGLE SUSPENSION AS-4441
- MERITOR FS7850
- FIRESTONE 333
- GOODYEAR BELLOWS 556-33-8-335
- GOODYEAR PART 3B14-452
- PISTON 3197
- TOP PLATE 3187
- TRIANGLE BELLOWS 6335
- TRIANGLE PART 4441
Headquartered in Nashville, Tennessee, Firestone Industrial Products® is a proud manufacturer of air spring and other anti-vibration solutions to heavy duty trucks, trailers, commercial vehicles, rail cars, and industrial equipment. It has come a long way since it revolutionized transportation with the introduction of the Airide™ Air Spring in 1938. Today, Firestone is more than just an air spring manufacturer—it’s a global leader and a local partner that sees solutions where others see obstacles. Both OEMs and everyday consumers trust this brand for their air suspension needs because of its unwavering commitment to quality and reliability. All Firestone parts are engineered and tested in ISO-certified facilities to ensure they meet the strictest standards and customer specifications.
