Name: Firestone W013585503 Airide Air Spring Reversible Sleeve 1T19F-12
SKU: w013585503
Price: 398.49 USD
Availability: InStock

FIRESTONE part description

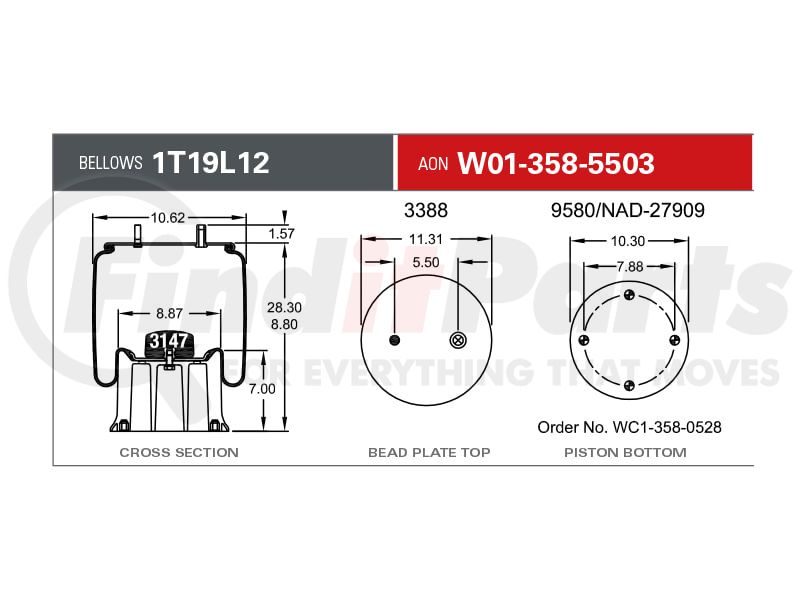

TECHNICAL DATA -

Order Number:

W01-358-5503

Bellows #:

1T19L-12

Assembly Weight:

24.8 lbs

Design Height:

16.5-20.5 inches

Minimum Jounce Height:

8.88 inches

Maximum Rebound Height:

N/A inches

Loading Capacity at 20 psig:

1,812 lbsf

Loading Capacity at 60 psig:

5,436 lbsf

Loading Capacity at 90 psig:

8,154 lbsf

Natural Frequency:

Maximum Diameter:

13.7 inches

Material Type:

Natural Rubber

Operating Temperature:

57Cº to-54Cº

Remarks: F-12 ON F-11 PISTON

TR: B-0162

FIRESTONE W013585503 Cross Reference

We have 25 alternatives for the W013585503 by FIRESTONE:
