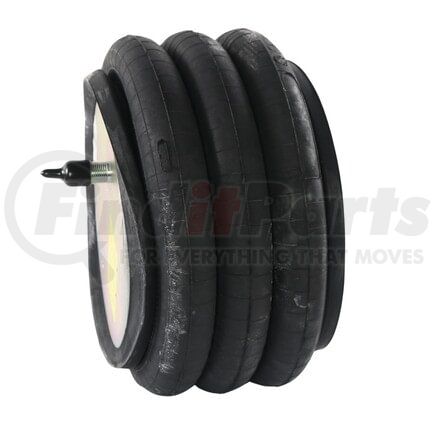

Name: Firestone W013588032 Air Spring Triple Convoluted 38
SKU: w013588032
Price: 343.49 USD
Availability: InStock

FIRESTONE part description

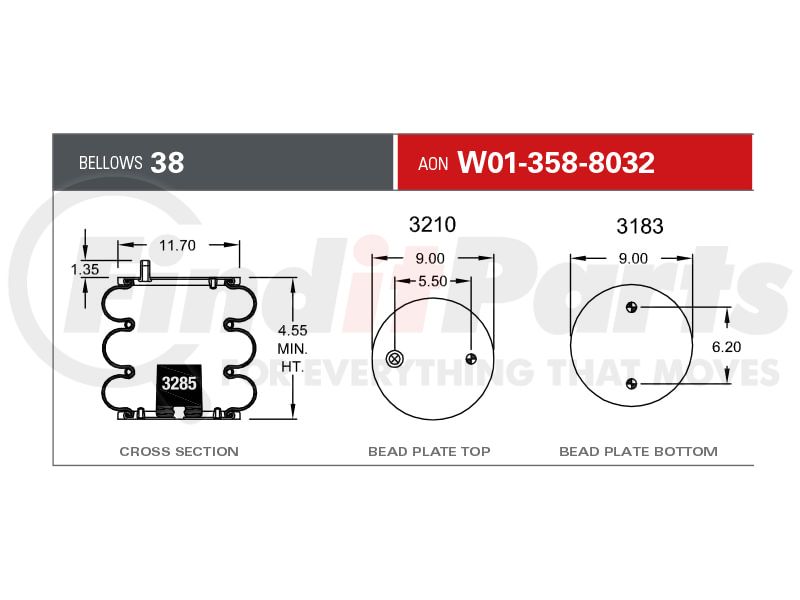

Order Number:	W01-358-8032
Bellows #:	38
Assembly Weight:	17.7 lbs
Design Height:	10-14 inches
Minimum Jounce Height:	4.55 inches
Maximum Rebound Height:	N/A inches
Loading Capacity at 20 psig:	1,282 lbsf
Loading Capacity at 60 psig:	3,846 lbsf
Loading Capacity at 90 psig:	5,769 lbsf
Natural Frequency:	Hz
Maximum Diameter:	12.9 inches
Material Type:	N/A
Operating Temperature:	57Cº to-54Cº
Remarks:

TR: 6964

FIRESTONE W013588032 Cross Reference

We have 19 alternatives for the W013588032 by FIRESTONE:

Headquartered in Nashville, Tennessee, Firestone Industrial Products® is a proud manufacturer of air spring and other anti-vibration solutions to heavy duty trucks, trailers, commercial vehicles, rail cars, and industrial equipment. It has come a long way since it revolutionized transportation with the introduction of the Airide™ Air Spring in 1938. Today, Firestone is more than just an air spring manufacturer—it’s a global leader and a local partner that sees solutions where others see obstacles. Both OEMs and everyday consumers trust this brand for their air suspension needs because of its unwavering commitment to quality and reliability. All Firestone parts are engineered and tested in ISO-certified facilities to ensure they meet the strictest standards and customer specifications.
