FIRESTONE W013589647 1T15M8 AIR SPRING

$428.49

3 Day Lead Time

Due to limited availability, we will confirm your order and notify you within 1 business day.
No Hassle Return Policy Details
Free Economy shipping on orders over $499 details
This item will ship about 3 days after the date of purchase

FIRESTONE W013589647 Part Description

Manufacturer

FIRESTONE

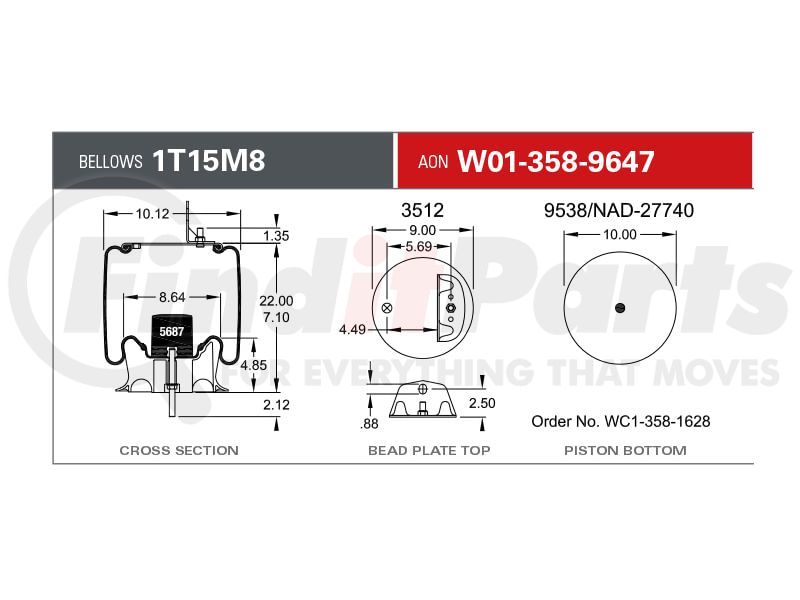

TECHNICAL DATAL:

  • Order Number: W01-358-9647
  • Bellows #: 1T15M-8
  • Assembly Weight: 15.9 lbs
  • Design Height: 12.5-13.5 inches
  • Minimum Jounce Height: 7 inches
  • Maximum Rebound Height: 21.64 inches
  • Loading Capacity at 20 psig: 1,510 lbsf
  • Loading Capacity at 60 psig: 4,530 lbsf
  • Loading Capacity at 90 psig: 6,795 lbsf
  • Natural Frequency: Hz
  • Maximum Diameter: 12.7 inches
  • Operating Temperature: 57Cº to-54Cº

FIRESTONE W013589647 Cross References

BrandPart Number
W014559647, W014559653, 6391, FIW013589647
CONTITECH910175P550, 910185P550, AS9647
FIRESTONE1T15M8, 1T15MT-8
HENDRICKSON587862, 649172, 58786-2
HENDRICKSON TRUCK587862
MACK57QL417M
MERITORFS9647
PISTON9538
TOP PLATE3512
TORQUE PARTSTR9647
TRIANGLE8550
TRIANGLE SUSPENSIONAS-8550
WORLD AMERICANWA01-9647C

FIRESTONE W013589647 Customer Reviews

No reviews yet

Be the first to review this product!

FIRESTONE W013589647 Manufacturer Information

Headquartered in Nashville, Tennessee, Firestone Industrial Products® is a proud manufacturer of air spring and other anti-vibration solutions to heavy duty trucks, trailers, commercial vehicles, rail cars, and industrial equipment. It has come a long way since it revolutionized transportation with the introduction of the Airide™ Air Spring in 1938. Today, Firestone is more than just an air spring manufacturer—it’s a global leader and a local partner that sees solutions where others see obstacles. Both OEMs and everyday consumers trust this brand for their air suspension needs because of its unwavering commitment to quality and reliability. All Firestone parts are engineered and tested in ISO-certified facilities to ensure they meet the strictest standards and customer specifications.
