(888) 312-8812 Login SignupFIRESTONE W013588852 Air Suspension Spring - Sleeve Type, 6.70" Height, 9" Top Plate, 10.25" Piston, Stud Mount
Tap to view 3 more
SHIPS TODAY
$23949
Limited availability at this price!
In Stock
Get it by Thursday, Jan 29
FIRESTONE W013588852 Part Description
Manufacturer
Features & Benefits
- Provides a smoother ride experience, even when the vehicle is heavily loaded or towing a trailer
- Adjustable air pressure enables customization of ride height for optimal performance with heavy loads or off-road driving
- Enhanced suspension dynamics lead to superior vehicle control and improved handling characteristics
- Allows restoration of your vehicle's ride quality, handling, and load-bearing capabilities without a significant expense
- Premium materials ensure durable performance and exceptional resistance to wear and tear
Firestone Air Spring
Optimize your commercial vehicle's suspension with the Firestone Air Spring, tailored for superior ride comfort and durability. Firestone has engineered this air spring to uphold the pinnacle of performance and dependability. Made with top-tier materials, this air spring promises extended durability, even in the most demanding operational settings. A part of Firestone’s line of highly efficient air springs, the Firestone W013588852 epitomizes the brand’s engineering excellence and quality, ensuring your fleet always runs smoothly and safely.

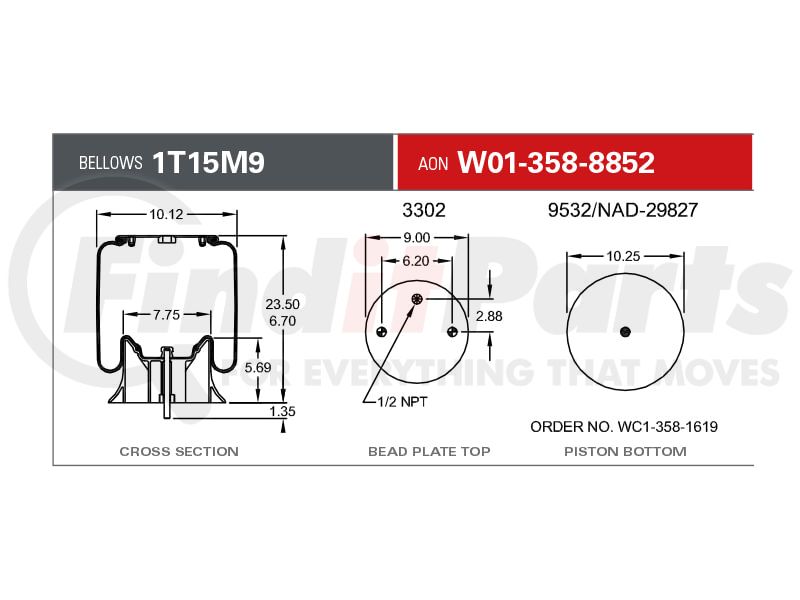

FIRESTONE W013588852 Specifications
Product Attributes
| Top Mounting | Threaded Hole |
| Air Spring Type | Sleeve |
| Bottom Piston/Plate Diameter | 10.25 in. |
| Bottom Mounting | Stud |
| Top Plate Diameter | 9.00 in. |
| Minimum Jounce Height | 6.7 in. |
| Loading Capacity at 20 psig | 1,440 lbs. |
| Maximum Diameter | 12.7 in. |
| Operating temperature | 57Cº to-54Cº |
| Loading Capacity at 60 psig | 4,320 lbs. |
| Natural Frequency | Hz |
| Maximum Rebound Height | 22.86 in. |
| Loading Capacity at 90 psig | 6,480 lbs. |
FIRESTONE W013588852 Cross References
| Brand | Part Number |
|---|---|
| W017038851, 566243066, 6364, FIW013588852 | |
| AIRTECH AIR SPRINGS | 39580K, 39781KALU, 39082KPP, 39265K, 38852KPP, 39367KALU |
| CONTITECH | 91019P472, AS8852, 64339 |
| DAYTON PARTS | 1R12370, 452-8852L |
| EIKO LIGHTING | 70 |
| EUCLID | FS9070 |
| FIRESTONE | 1T15M9, 1T15M-9, W013589070 |
| GOODYEAR | 1R12-568, 1R12568 |
| GOODYEAR PART | 1R12-568 |
| HD VALUE | HDV8852, HDV8852 |
| MERITOR | FS8852, MAF8852 |
| NAVISTAR | FLTA1R12568 |
| PETERBILT | 03-07887 |
| PISTON | 9532 |
| SPRINGRIDE | 1R121081 |
| STEMCO | 1R12-561, 1R12-562, 1R12-563, 1R12-567, 1R12-568, 1R12-566 |
| TOP PLATE | 3302 |
| TORQUE PARTS | TR8852 |
| TRIANGLE BELLOWS | 6364 |
| TRIANGLE PART | 8472 |
| TRIANGLE SUSPENSION | AS-8472 |
| WORLD AMERICAN | WA01-8852C |
FIRESTONE W013588852 Customer Reviews
No reviews yet
Be the first to review this product!
FIRESTONE W013588852 Manufacturer Information
Headquartered in Nashville, Tennessee, Firestone Industrial Products® is a proud manufacturer of air spring and other anti-vibration solutions to heavy duty trucks, trailers, commercial vehicles, rail cars, and industrial equipment. It has come a long way since it revolutionized transportation with the introduction of the Airide™ Air Spring in 1938. Today, Firestone is more than just an air spring manufacturer—it’s a global leader and a local partner that sees solutions where others see obstacles. Both OEMs and everyday consumers trust this brand for their air suspension needs because of its unwavering commitment to quality and reliability. All Firestone parts are engineered and tested in ISO-certified facilities to ensure they meet the strictest standards and customer specifications.
