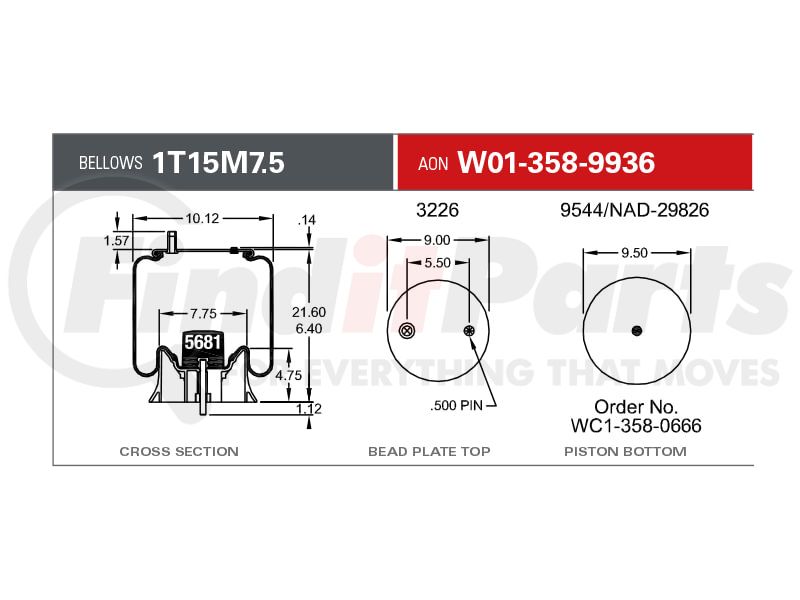

Firestone W013589936 - Air Spring - 21.60" Extended, 6.40" Compressed, 9.00" Wdith Top Plate, Reversible Sleeve
$19999
MSRP: $310.15
Save: $110.16
In stock
limited availability at this price!
FIRESTONE part description
TECHNICAL DATA:
- Order Number: W01-358-9936
- Bellows #: 1T15M-7.5
- Assembly Weight: 13.9 lbs
- Design Height: 13.5-15.5 inches
- Minimum Jounce Height: 6.5 inches
- Maximum Rebound Height: 20.9 inches
- Loading Capacity at 20 psig: 1,440 lbsf
- Loading Capacity at 60 psig: 4,320 lbsf
- Loading Capacity at 90 psig: 6,480 lbsf
- Natural Frequency: Hz
- Maximum Diameter: 12.7 inches
- Operating Temperature: 57Cº to-54Cº
FIRESTONE W013589936 Cross Reference
We have 32 alternatives for the W013589936 by FIRESTONE:
- TORQUE PARTS TR9936
- FIRESTONE 1T15M7.5
- GOODYEAR 1R12-499
- GOODYEAR 1R12499
- TRIANGLE 8454
- NEWAY 90557156
- SAF-HOLLAND 90557156
- NEWAY 90557300
- SAF-HOLLAND 90557300
- CONTITECH 910175P454
- W013589936
- W016759936
- 566243038
- 6391
- FIW013589936
- CONTITECH AS9936
- TRIANGLE SUSPENSION AS-8454
- MERITOR FS9936
- STEMCO 1R12-487
- STEMCO 1R12-492
- STEMCO 1R12-494
- STEMCO 1R12-498
- STEMCO 1R12-499
- STEMCO 1R12-488
- FIRESTONE 1T15M-8
- FIRESTONE 1T15M-7.5
- GOODYEAR PART 1R12-499
- HOLLAND (NEWAY) 905-57-156
- PISTON 9544
- TOP PLATE 3226
- TRIANGLE BELLOWS 6391
- TRIANGLE PART 8454
Headquartered in Nashville, Tennessee, Firestone Industrial Products® is a proud manufacturer of air spring and other anti-vibration solutions to heavy duty trucks, trailers, commercial vehicles, rail cars, and industrial equipment. It has come a long way since it revolutionized transportation with the introduction of the Airide™ Air Spring in 1938. Today, Firestone is more than just an air spring manufacturer—it’s a global leader and a local partner that sees solutions where others see obstacles. Both OEMs and everyday consumers trust this brand for their air suspension needs because of its unwavering commitment to quality and reliability. All Firestone parts are engineered and tested in ISO-certified facilities to ensure they meet the strictest standards and customer specifications.
