Firestone W013585426 - AIR SPRING
$36499
In stock
limited availability at this price!
FIRESTONE part description
TECHNICAL DATA -
Order Number: | W01-358-5426 |

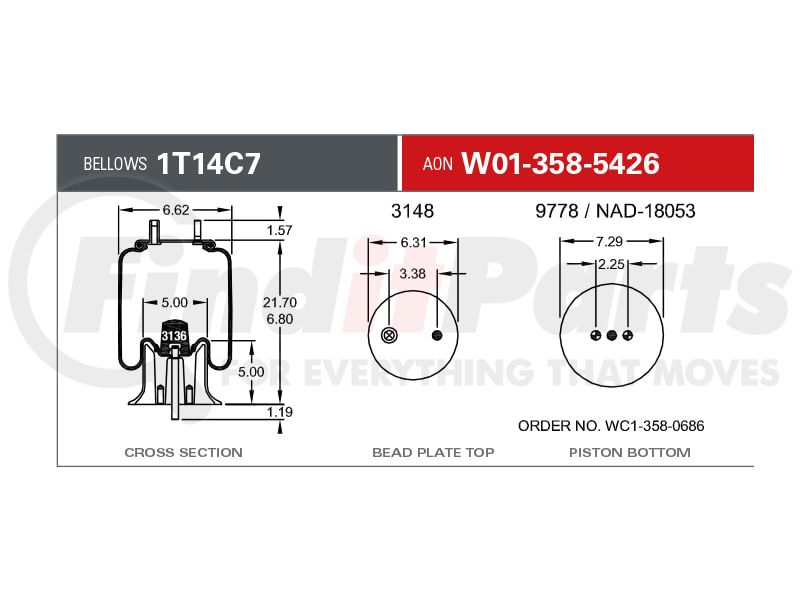

Bellows #: | 1T14C-7 |
Assembly Weight: | 9.3 lbs |
Design Height: | 12-15 inches |
Minimum Jounce Height: | 6.78 inches |
Maximum Rebound Height: | 19.43 inches |
Loading Capacity at 20 psig: | 636 lbsf |
Loading Capacity at 60 psig: | 1,908 lbsf |
Loading Capacity at 90 psig: | 2,862 lbsf |
Natural Frequency: | Hz |
Maximum Diameter: | 9.1 inches |
Material Type: | Natural Rubber |
Operating Temperature: | 57Cº to-54Cº |
Remarks: F-4 PISTON WITH STUD 1/2x5.6LG. | |
TR: B3245 |
FIRESTONE W013585426 Cross Reference
We have 9 alternatives for the W013585426 by FIRESTONE:
Headquartered in Nashville, Tennessee, Firestone Industrial Products® is a proud manufacturer of air spring and other anti-vibration solutions to heavy duty trucks, trailers, commercial vehicles, rail cars, and industrial equipment. It has come a long way since it revolutionized transportation with the introduction of the Airide™ Air Spring in 1938. Today, Firestone is more than just an air spring manufacturer—it’s a global leader and a local partner that sees solutions where others see obstacles. Both OEMs and everyday consumers trust this brand for their air suspension needs because of its unwavering commitment to quality and reliability. All Firestone parts are engineered and tested in ISO-certified facilities to ensure they meet the strictest standards and customer specifications.
